Zen was constructed in South Africa by Simon Bonger at Bonger Marine. Epoxy resin and tri-axle glass laminated with ATC core-cell foam where used for the hull, decks, pilot house and major bulkheads. This provided Zen with a proven superior weight to strength ratio structure that could be depended on in off shore conditions, without sacrificing weight and performance.

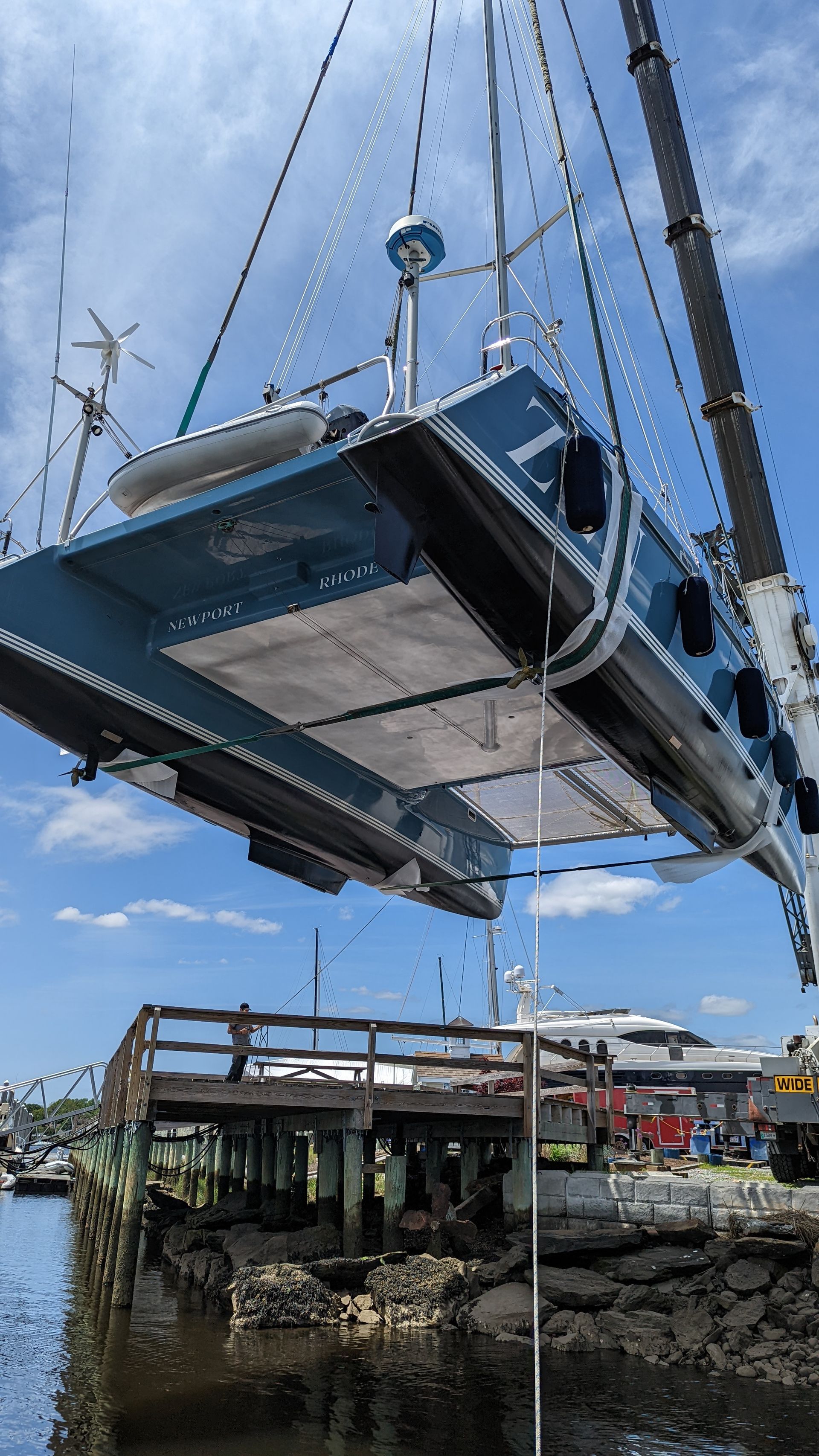

The independently moving hulls are connected with uni-directional carbon fiber and epoxy cross beams bonded to the epoxy/fiberglass foam cored bulkheads, giving Zen added strength without piling on weight.

The dagger-boards on Zen are cored fiberglass/epoxy construction passing through fiberglass/epoxy construction trunk with up and down controls leading back to the forward cockpit.

Zen's twin spade rudders are fiberglass composite with solid Aqumet 19 rudder stocks supported with low friction bearings at hull entry.

For added safety, both hulls on Zen are equipped with a collision bulkhead.

Fiberglass hulls cored with PVC foam with Awlgrip paint finish on the exterior. Skeg keels with dagger boards offering board up draft of 3'2" and board down draft of 7'8". The rudders are semi-balanced spades. Other features include:

• Media blasted and new 2x barrier coat 2022

• Stars and stripes vinyl wrap on outside topsides (2022)

• Stars and Stripes Blue AwlCraft bridgedeck and inside topsides.

• White triple boot stripe

• Hard bottom epoxy antifoul 2026

• Rub rail with bull nose cap port and starboard outboard

• Escape hatch starboard inboard

• Stainless steel handrails inboard and outboard of port and starboard transoms

• Hot/cold transom shower to port

• In water boarding step on training edge of port and starboard rudders

The painted decks are an AwlGrip white with a nonskid texture. The forward cockpit and aft deck also feature a Flexiteak composite decking system that was installed in 2007. The deck also features:

• Anderson stainless steel #52 self tailing mainsheet/main halyard electric winch

• Anderson stainless steel #52 self tailing jib sheet winch

• Anderson stainless steel #46 self tailing traveler/runner controls winch

All of Zen's halyards, reefing and running lines are led to the forward cockpit for superior control and safety while sailing. Other features of her rig are:

• Sparcraft anodized aluminium deck stepped mast with (2) sets of diamond over single spreaders

• Sparcraft anodized aluminium boom with internal reefing lines

• Harken bat-cars and track for mainsail

• 1X19 316 Dyform stainless steel wire rope standing rigging (being re-placed 2026)

• Pro-Furl head sail furling system installed on head-stay (new roller drum 2026)

• Anodized aluminium cross beam with bowsprit for spinnaker, gennaker or Code-0

• Facnor endless line furler mounted on bowsprit

• Low stretch Spectra halyards (all new 2026)

• Sta-Set low stretch Dacron sheets and control lines

• Dyneema running back-stays

• Mainsail ~ 2022- North Sails Full Batten Mainsail NPL Tour Xi Grey NorLam Xi14 Grey CRG

• Jib ~ 2010 - North Sails NPL

• Asymmetrical reaching sail North Sails – 2022

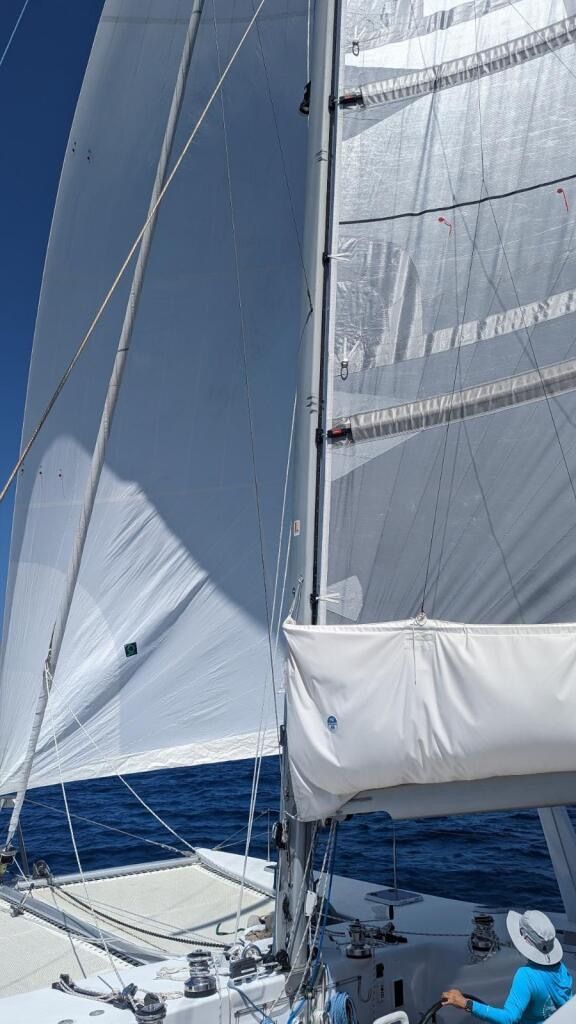

• Code-0 ~ 2022 – Bottom up furling - North Sails Code 65 NPL Cod Xi TF1 Xi09 CDT

• Code 55 - 3Di– 2024

• Stack pack mainsail cover ~ New 2026

• Forward cockpit bimini ~ 2010

• Side deck bimini ~ 2010

• Aft deck bimini with rain collection feature

• Textaline window covers for wing bridge house windows – New 2026

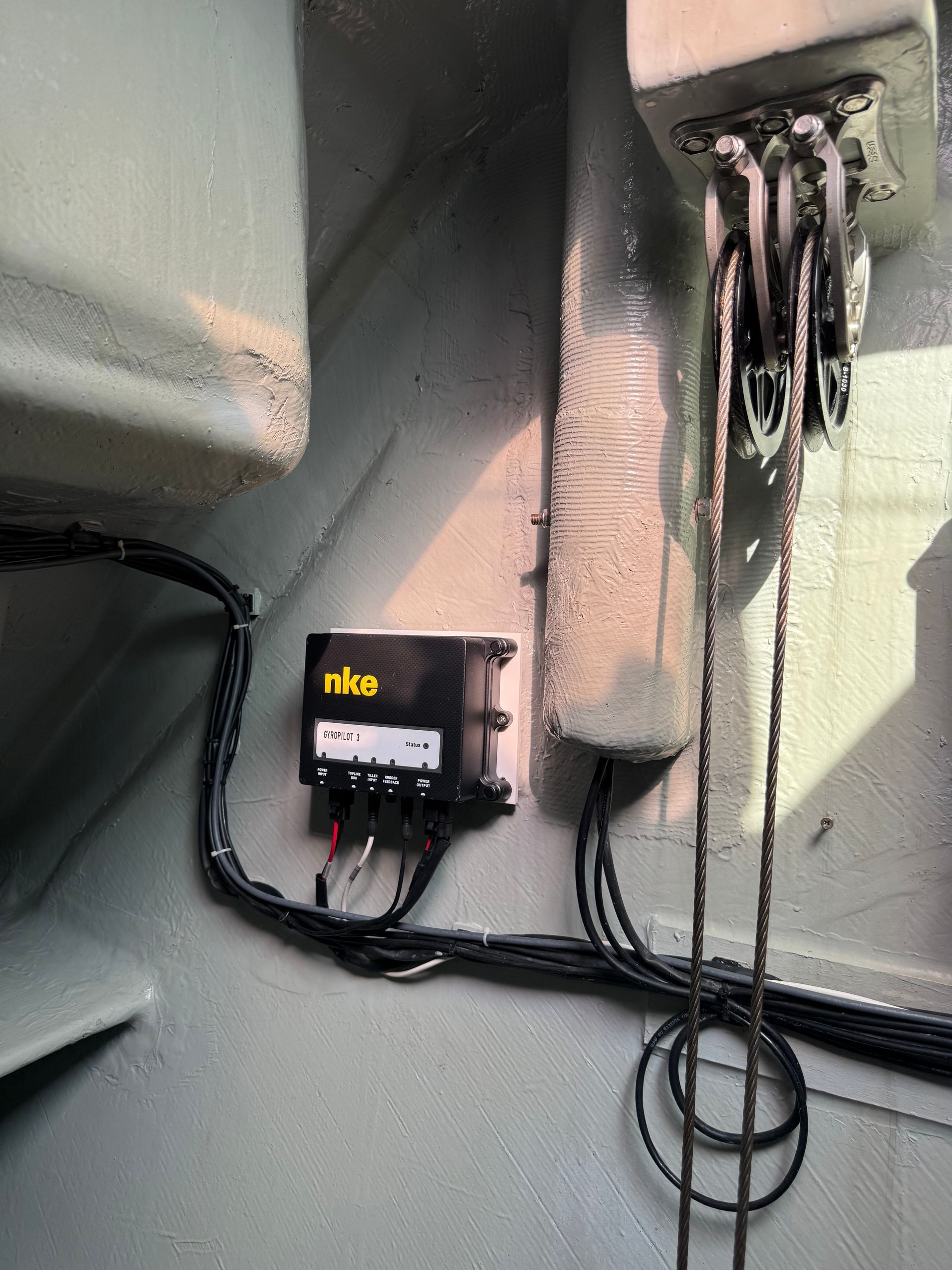

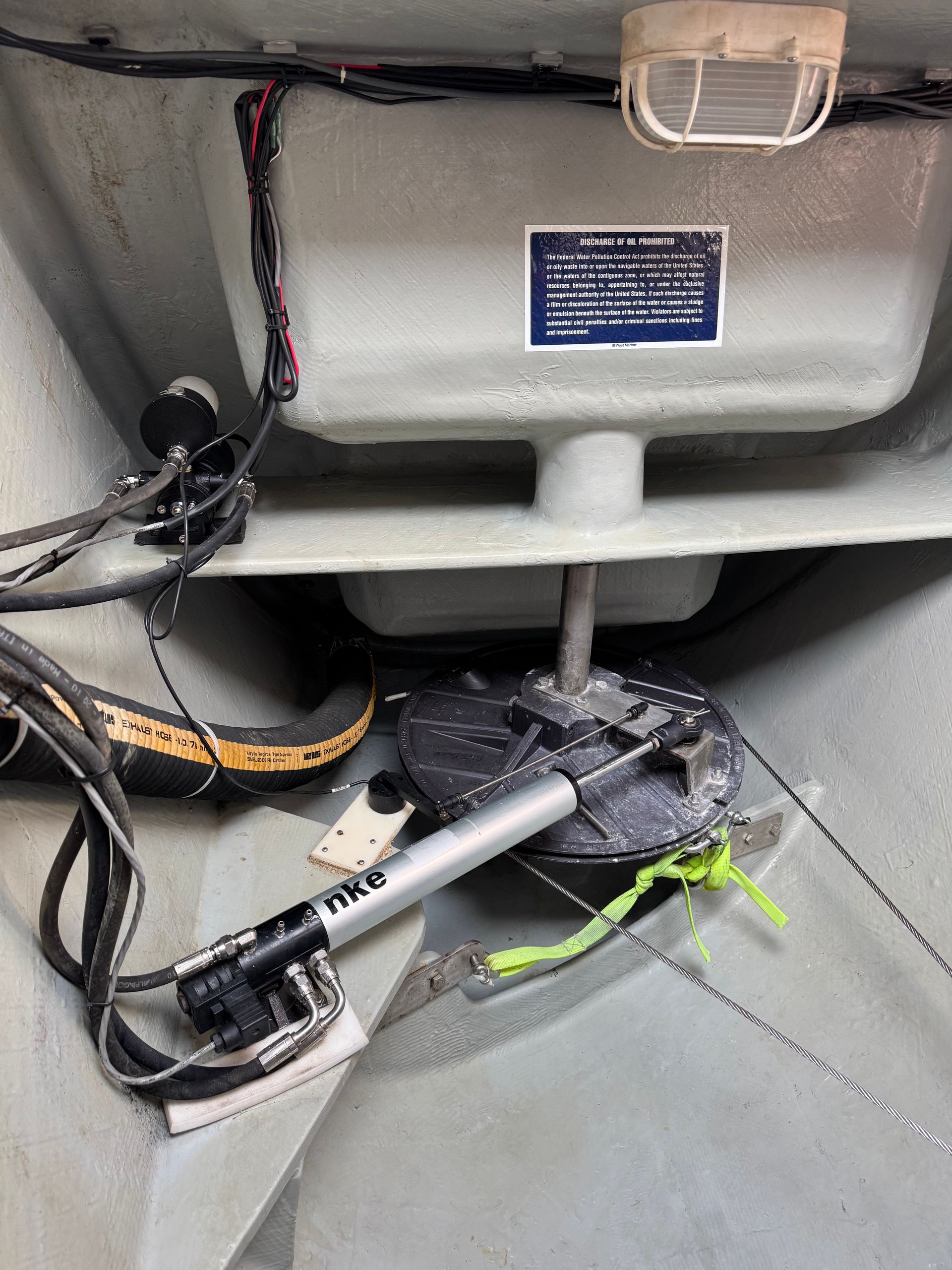

Auto Pilot

• NKE Gyropilot 3 – 2022

• L&S linear hydraulic ram X 2 (one installed and one complete spare unit)

Forward Cockpit

• NKE Multidisplay (white) multi-function display for speed, depth and wind - 2022

• Ritchie Powerdamp Plus compass

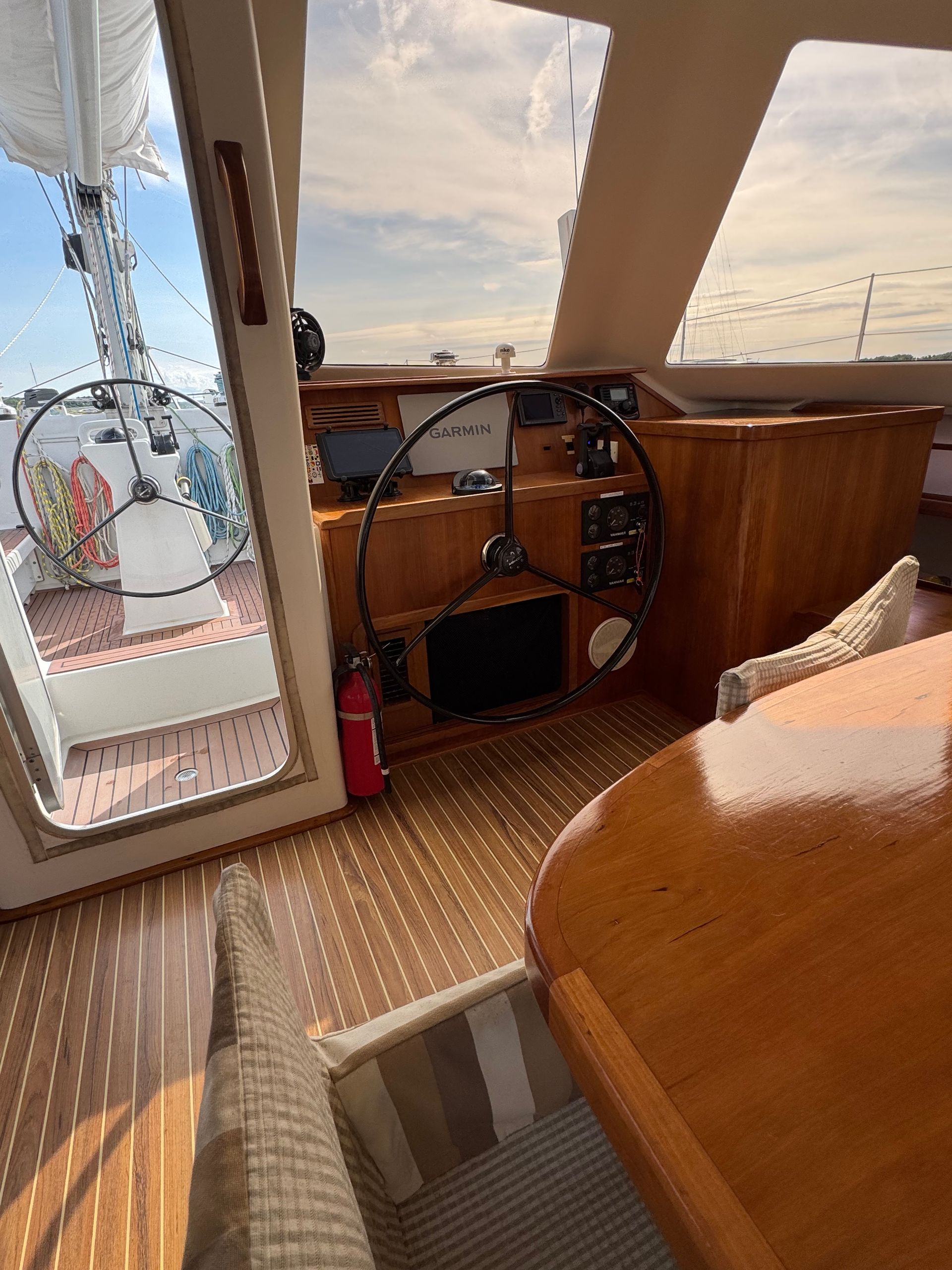

Inside Helm Station

• Garmin 8616xsv Plotter and Radar – 2022

• Garmin Fantom 18x

• NKE Gyropilot with Multigraphic Carbon autopilot control head - 2022

• I-Com IC-M504 marine VHF

• Vesper Xb-6000 Class B Ais Sp160 Bundle W/Sp-160 Amplified Splitter

• Ritchie Powerdamp Plus compass Navigation Station

• NKE Multigraphic Carbon autopilot control head - 2022

• I-Com Commandmic III remote marine VHF

• Iridium Go with docking station and external antenna

• Pactor modem

• I-Com IC-M710 MF/HF SSB radio

• Pioneer DEH-P460MP WMA/MP3 stereo tuner

• Global Fix ARC EPIRB

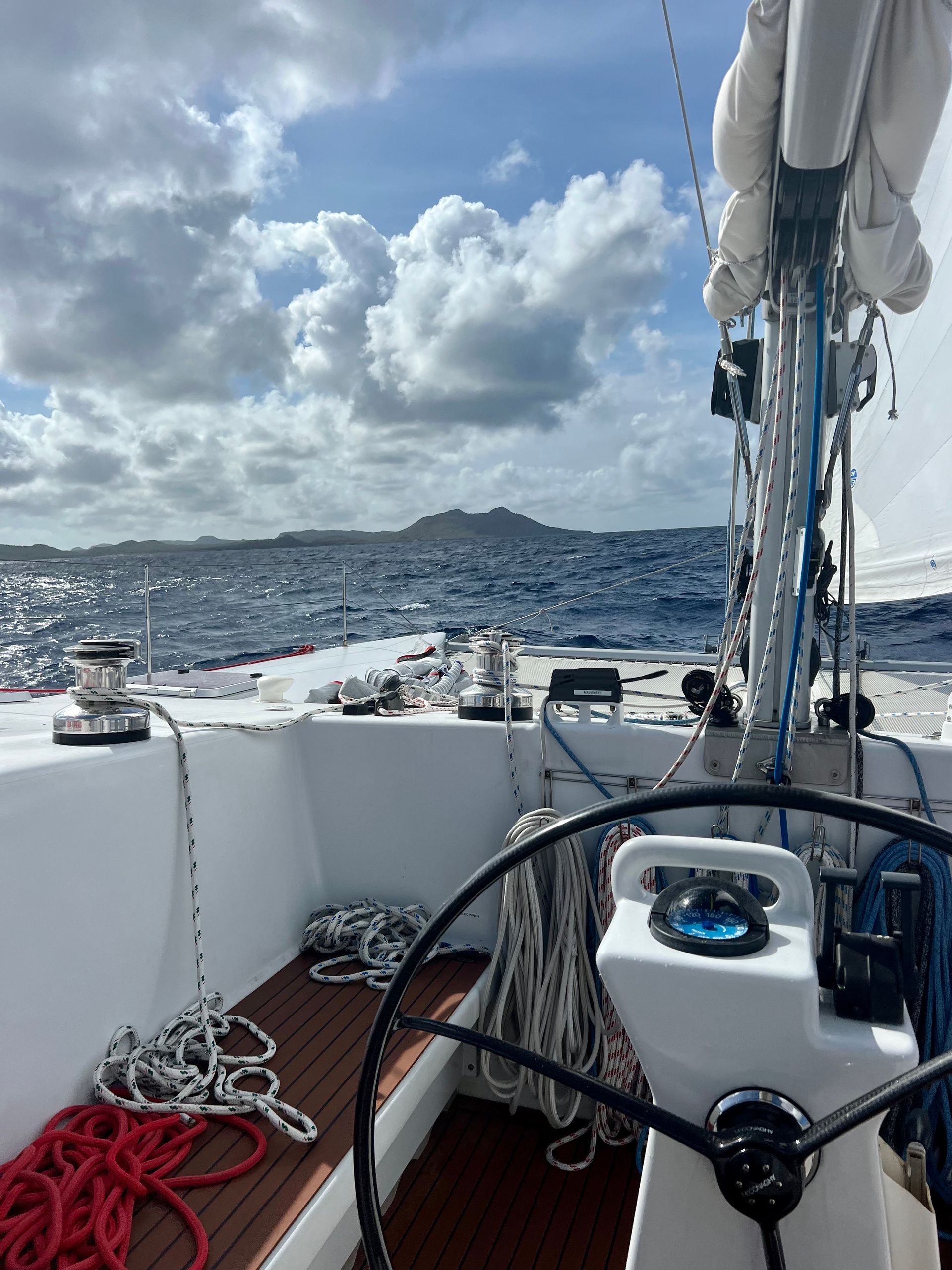

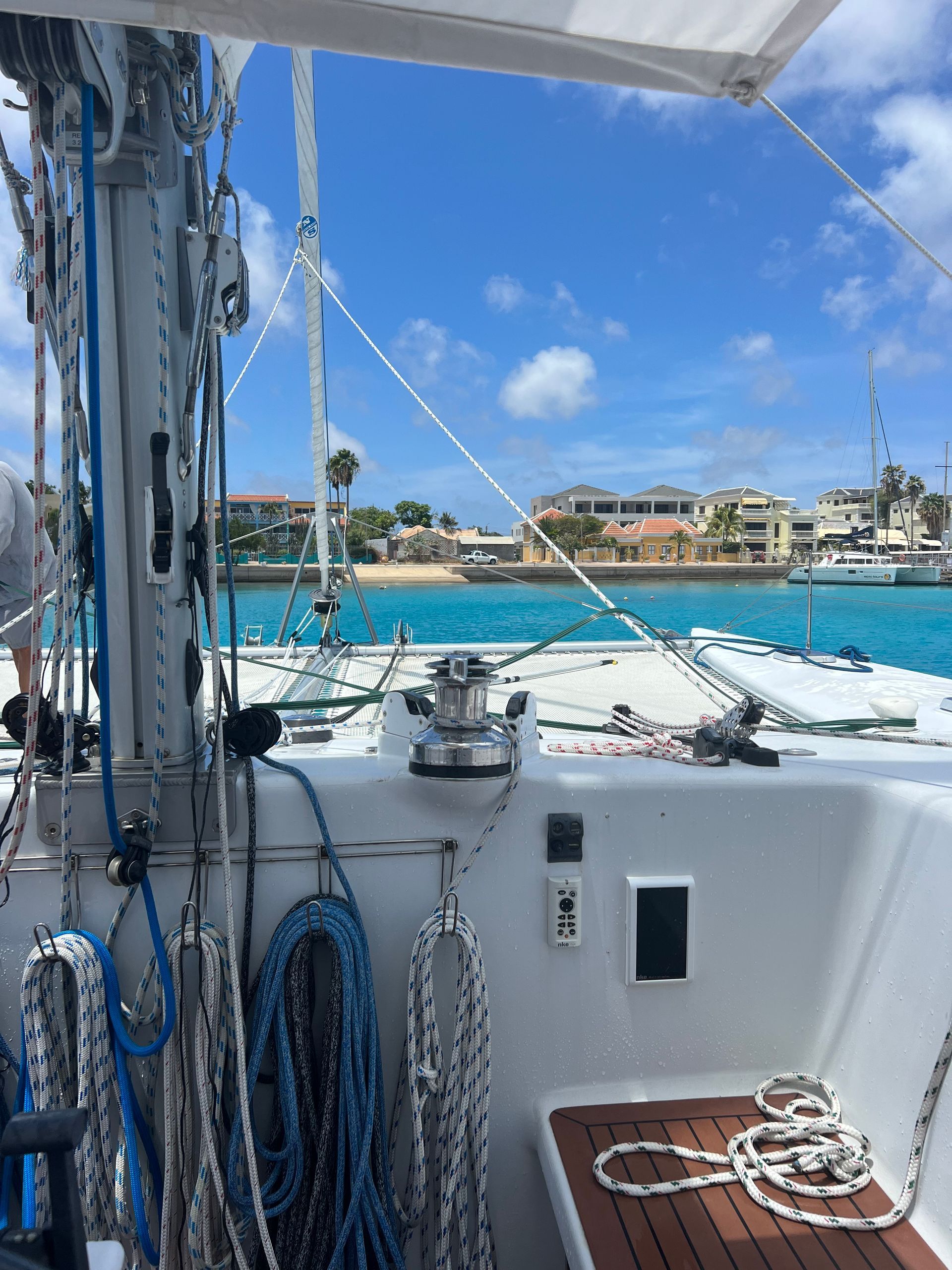

Forward Cockpit

• Custom cockpit steering pedestal

• 37' Clear coat carbon fiber wheel

• Engine controls on pedestal (See Mechanical Systems)

• Ritchie Powerdamp Plus compass on pedestal

• Winches (See Decks)

• Stainless steel line organizer

• Sailing electronics (See Electronics)

• Bench seating port and starboard

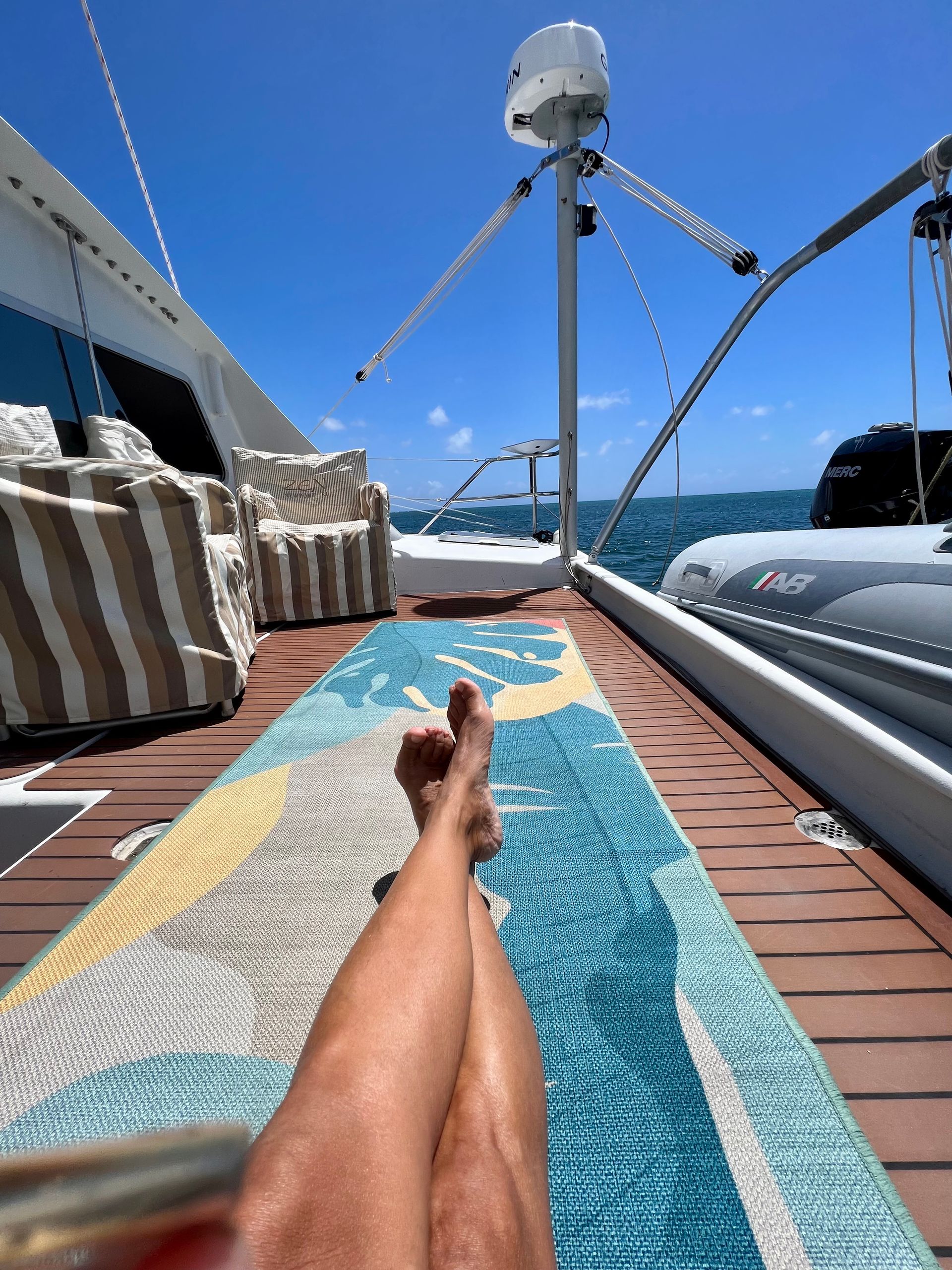

Aft Deck

• Tender davit with hoist

• Davit system allows for tender to be hung off stern or swung onto aft deck for offshore passages

• (3) Flush deck lockers for storage

• Custom carbon fiber dining table with removable legs and storage bag

Tender

• AB   10AL

• 20hp 4 stroke Mercury 2021

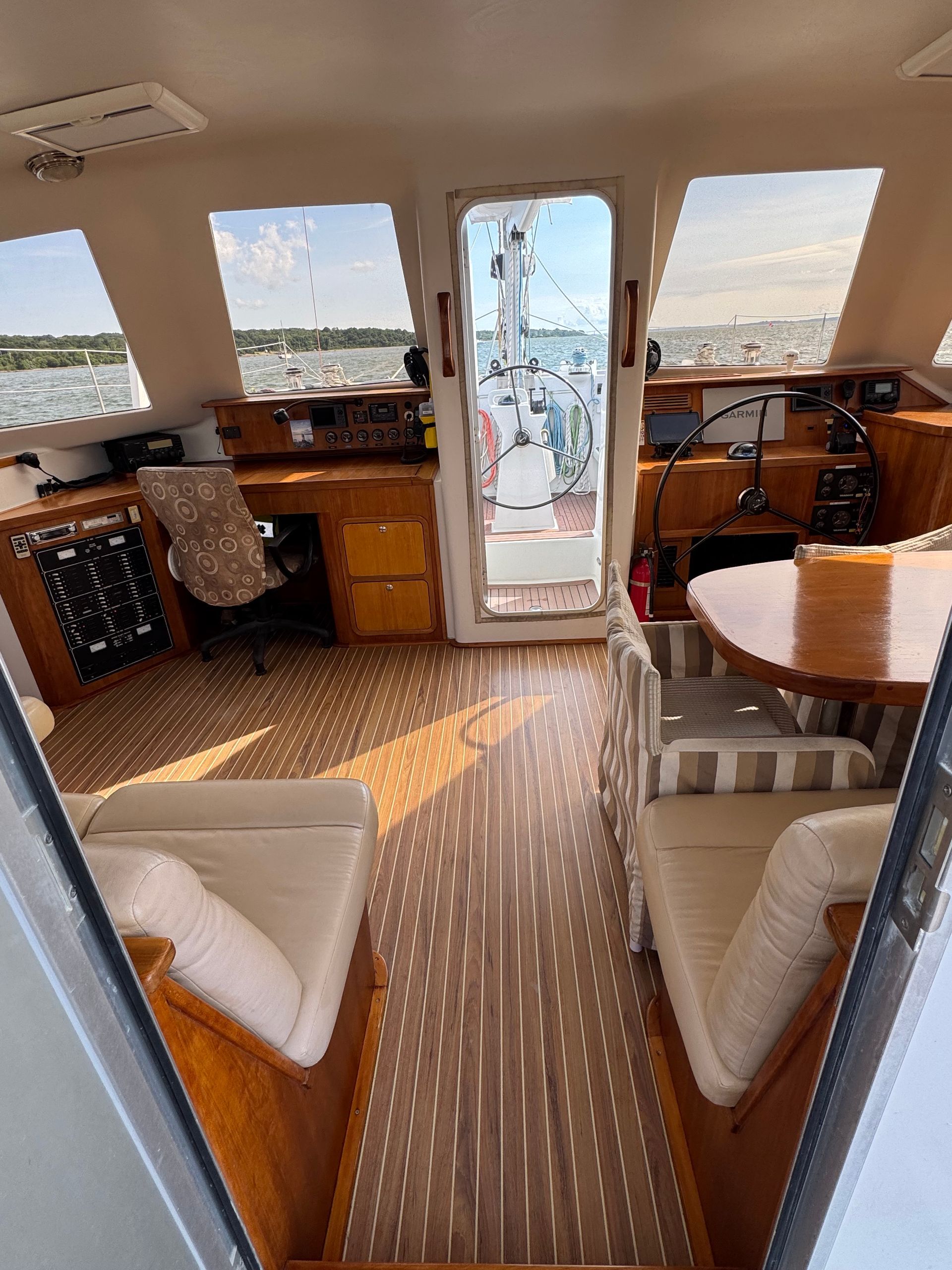

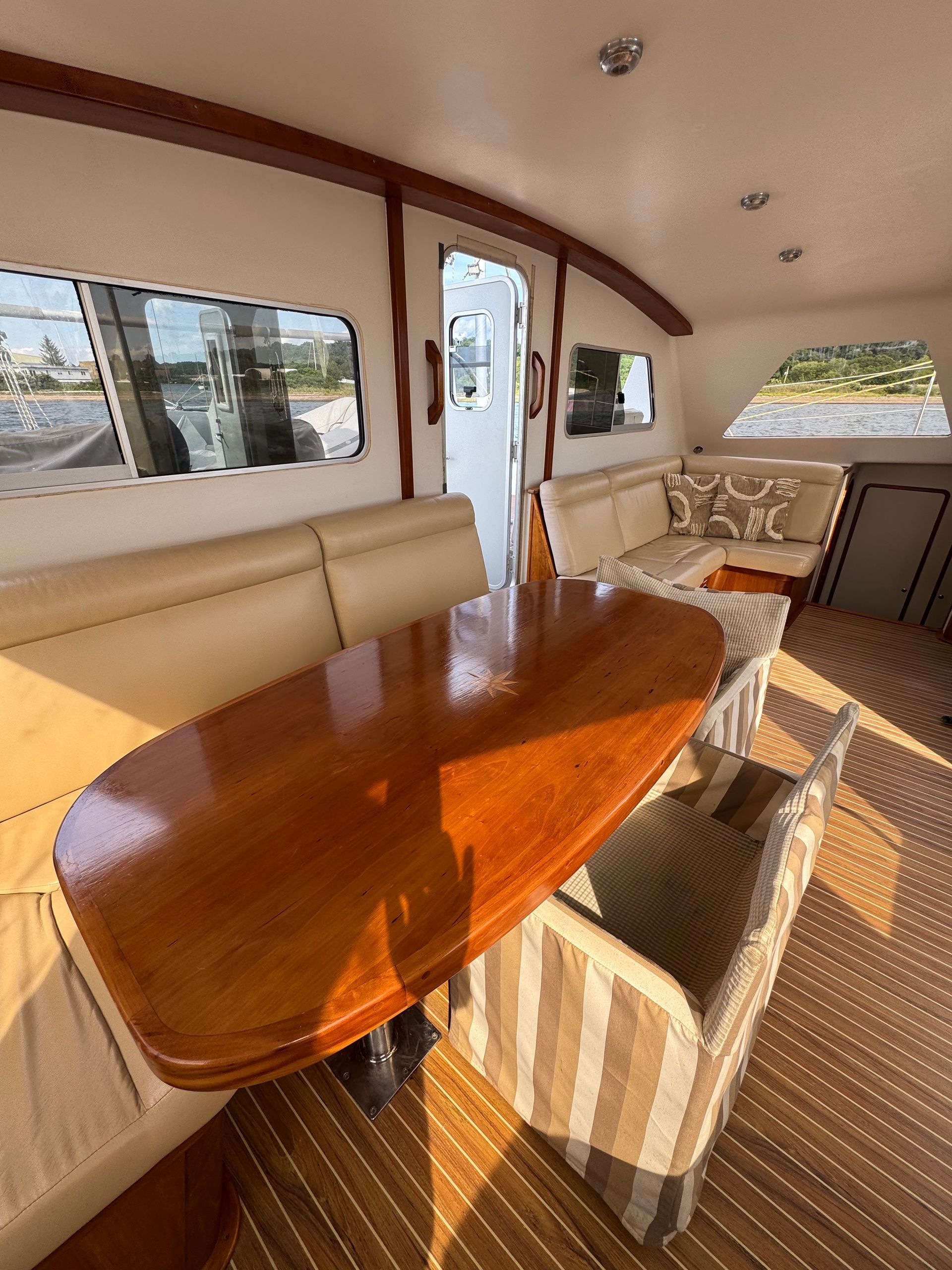

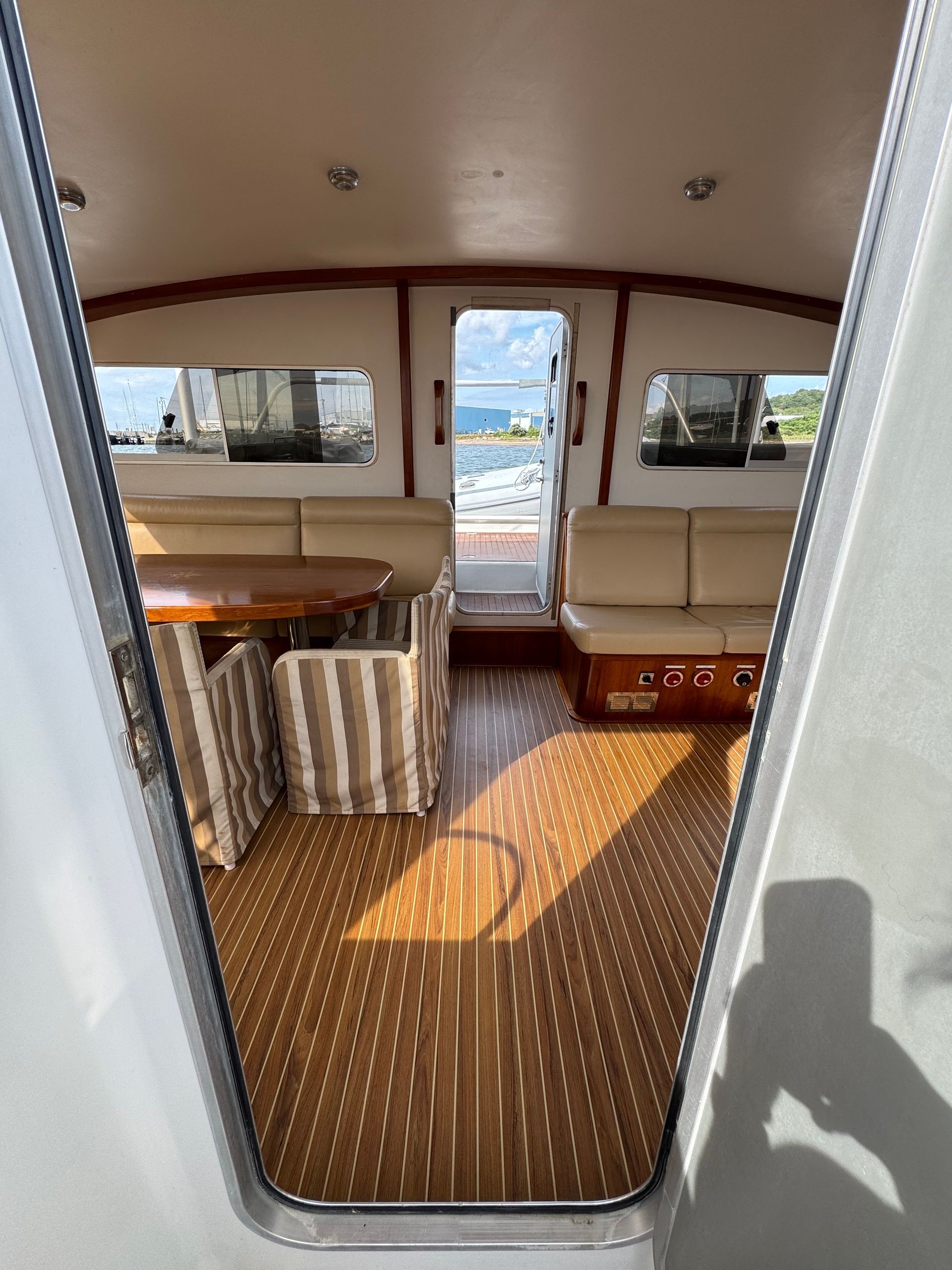

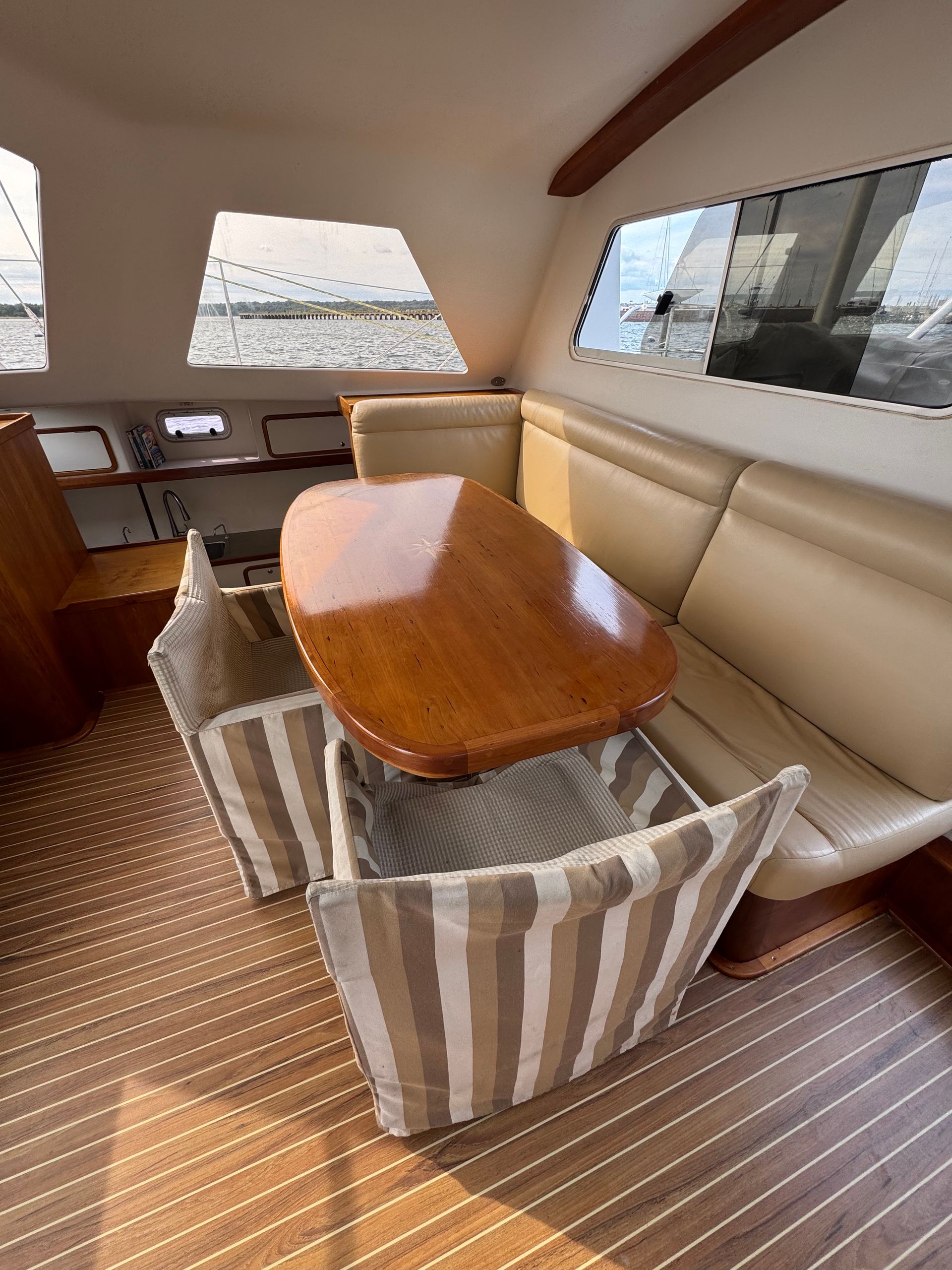

Wing Bridge Salon

The interior of Zen offers fantastic viability from the wing bridge salon with great use of space without sacrificing comfort and form.

Stepping through the aft deck bulkhead door, you enter the Wing Bridge Salon with:

• Varnished cherry trimmed furniture

• Odyssey laminated teak and holly sole

• Cream Ultra-Suede upholstered settee and saloon dining cushions

• Dome overhead lighting

• (2) Overhead hatches (see Decks)

• (2)Ocean Air sunshade with bug screen

• (2) Bulkhead doors with opening windows

• (4) Teak handrails port and starboard of doors

• (2) Sliding windows on aft bulkhead

• (2) 12-Volt Hella fans port and starboard of forward bulkhead door

• (2) Reading lights

• (2) Marine speakers

• L-shaped seating area

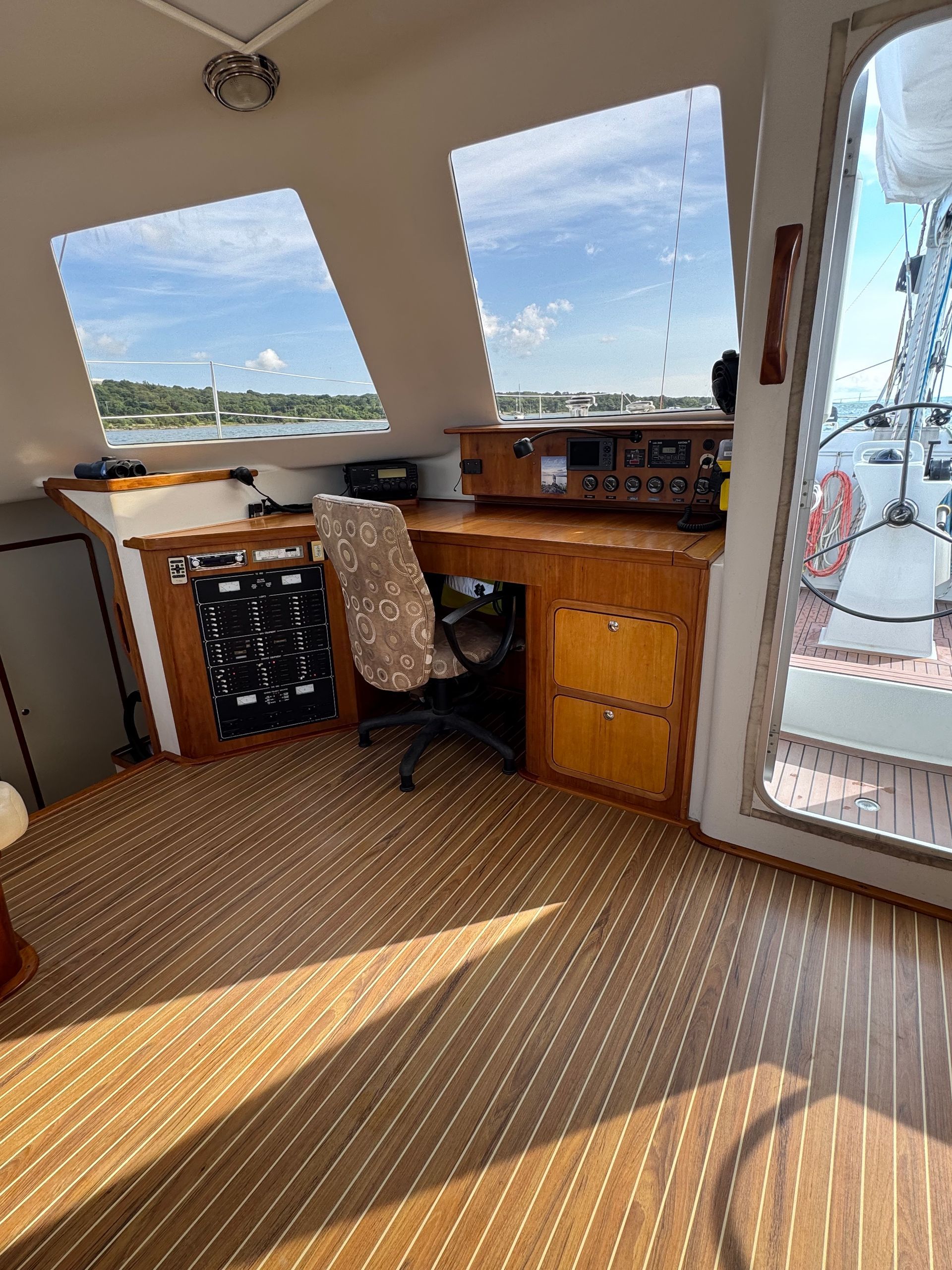

• Navigation station/office space with chart drawers below work surface and (2) file drawers

• AC & DC outlets

• Electrical control panels (See Electrical System)

• Water level gauge

• Fuel level gauges

• Suite of electronics (see Electronics)

• Inside helm station

• 37" Clear coat carbon fiber wheel

• Slave throttle

• (2) Engine control panels

• Custom dining table with teak holly wooden inlay

• (4) Folding chairs with custom covers

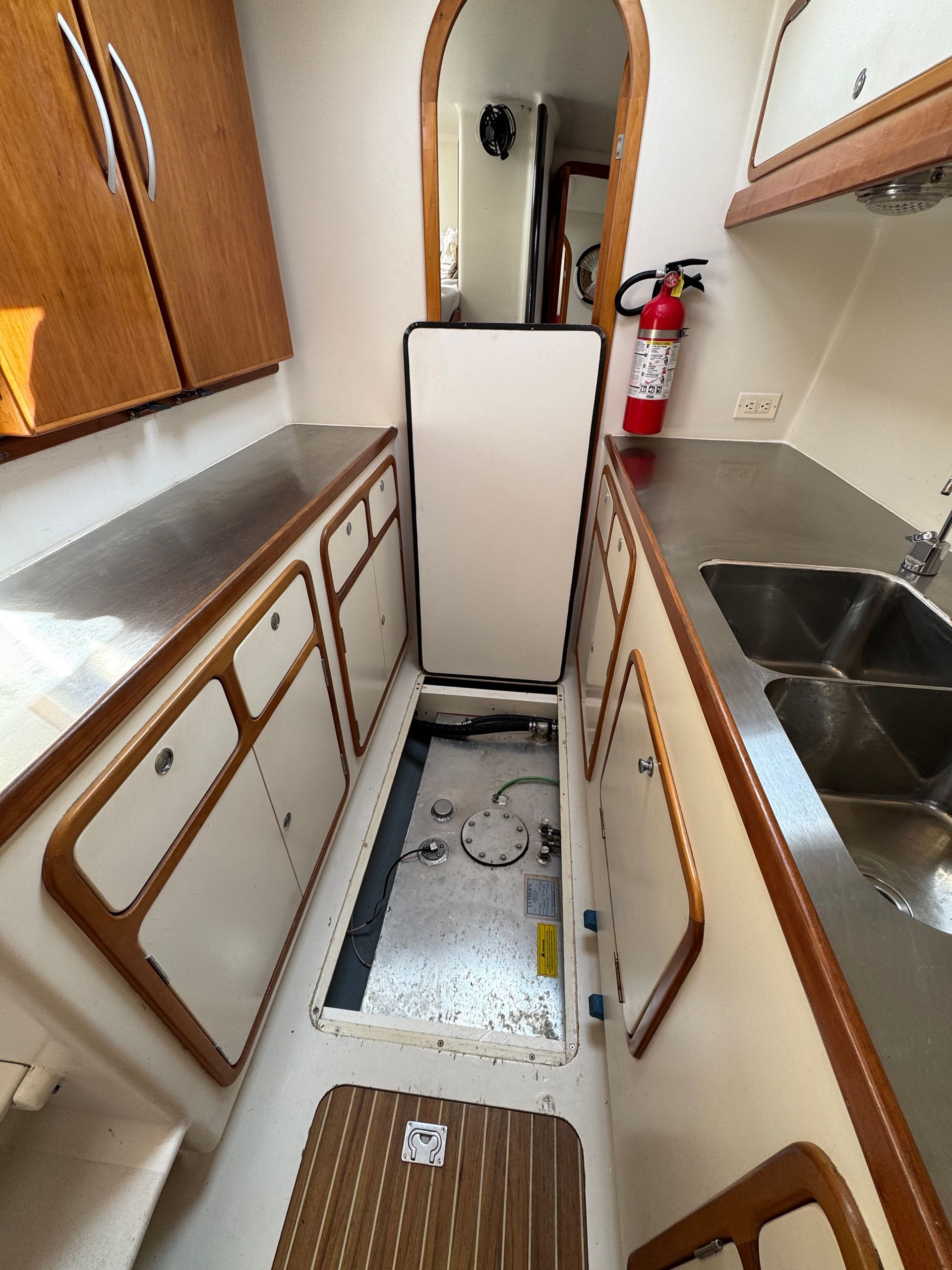

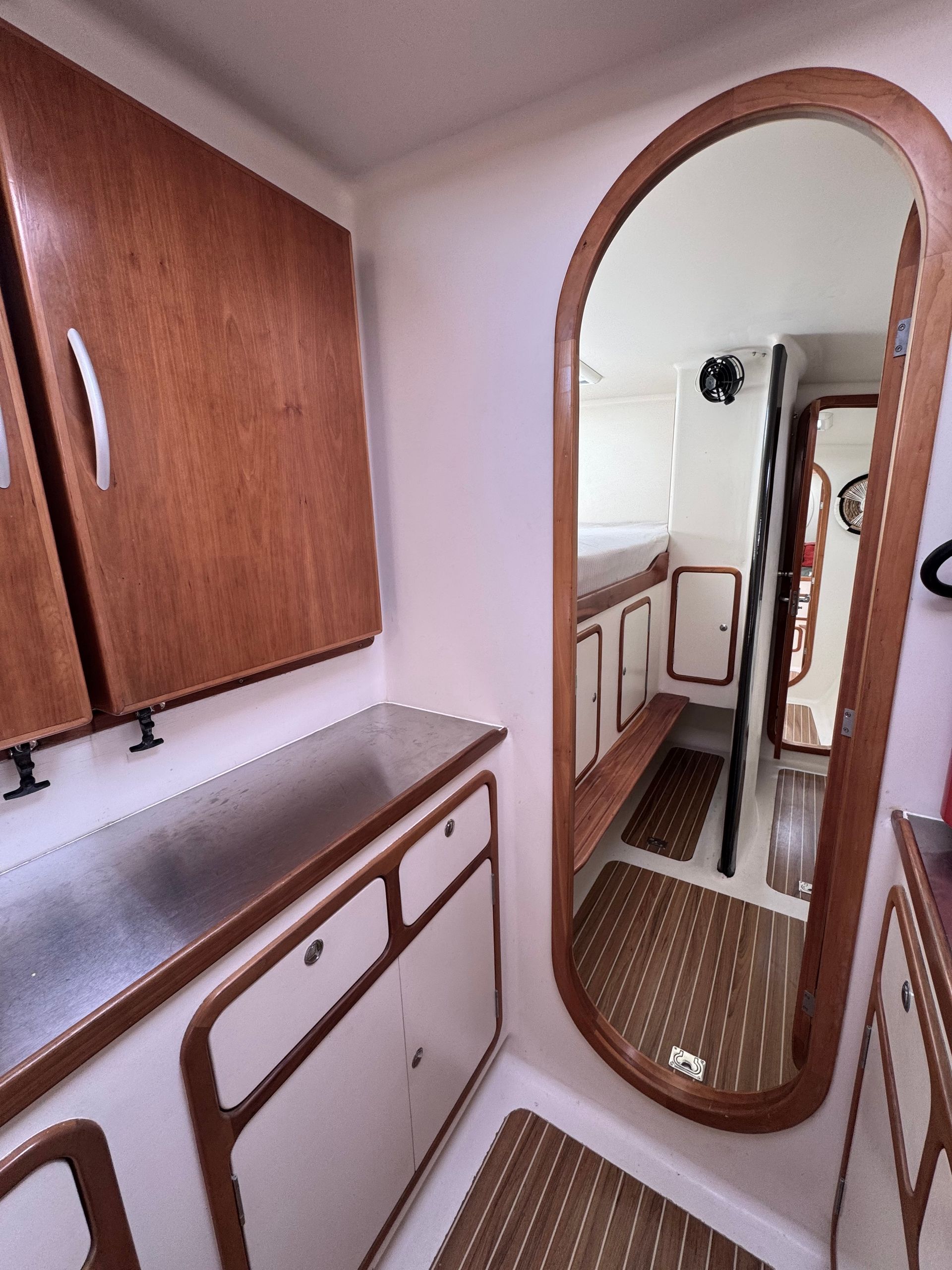

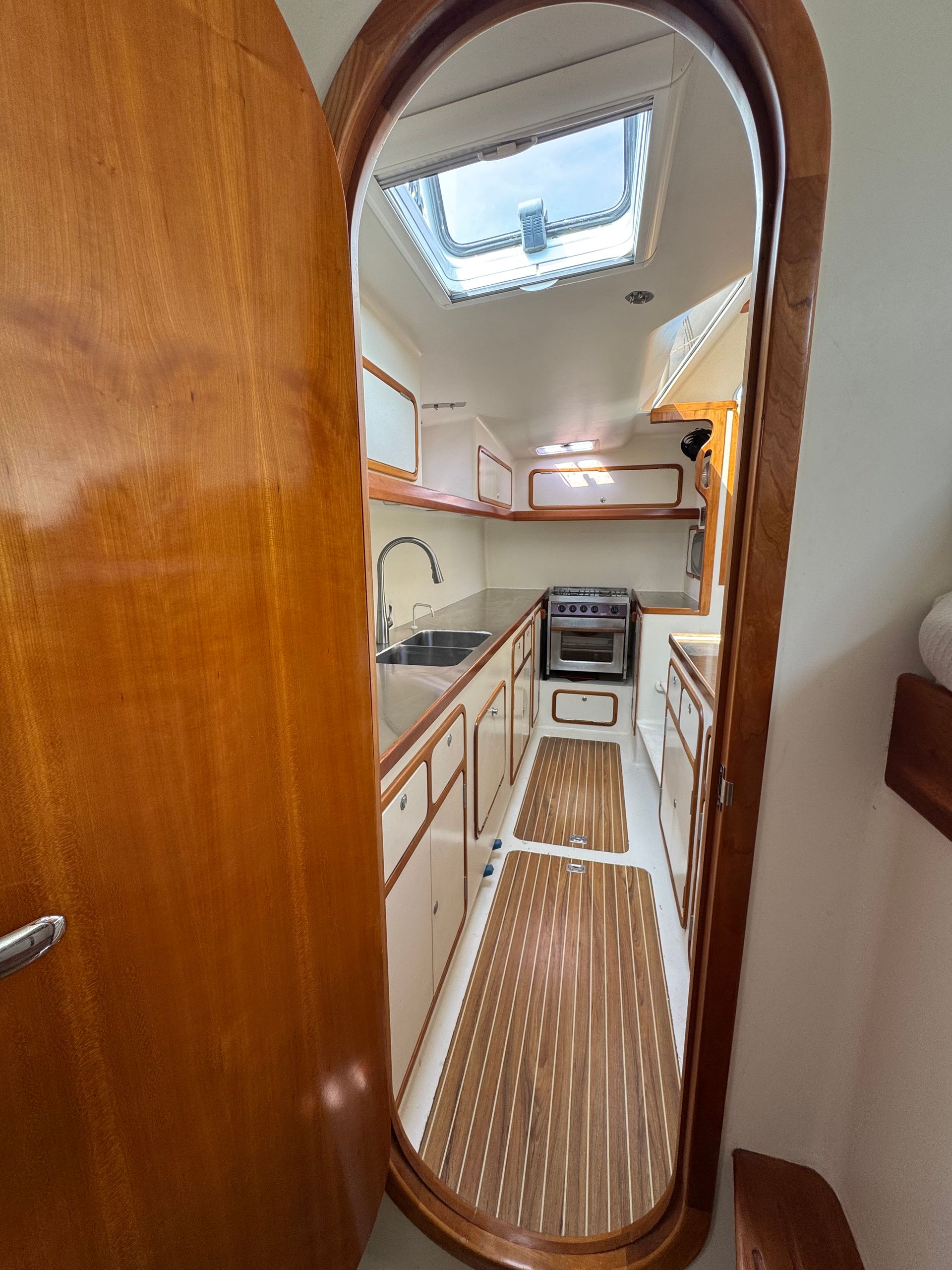

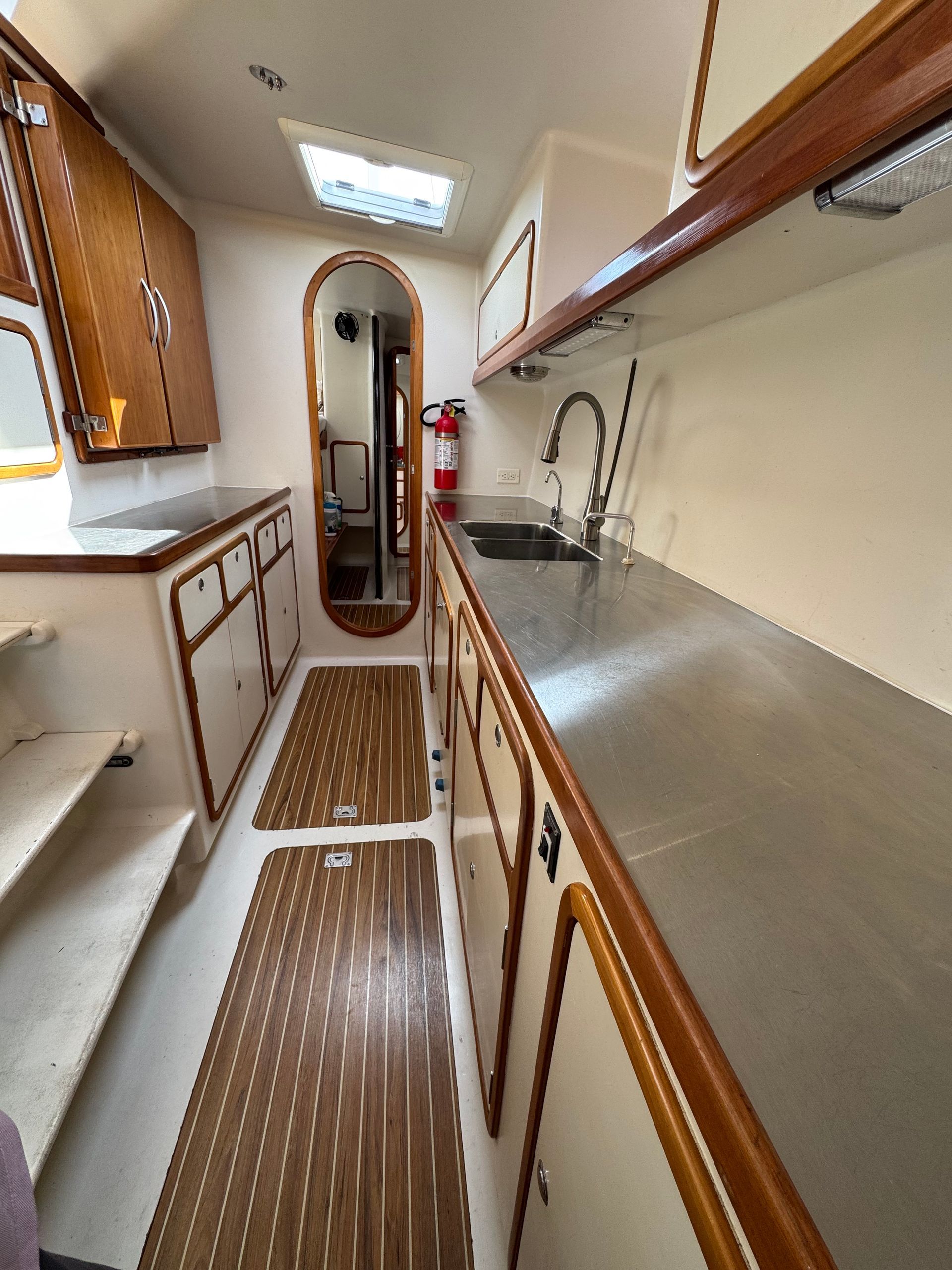

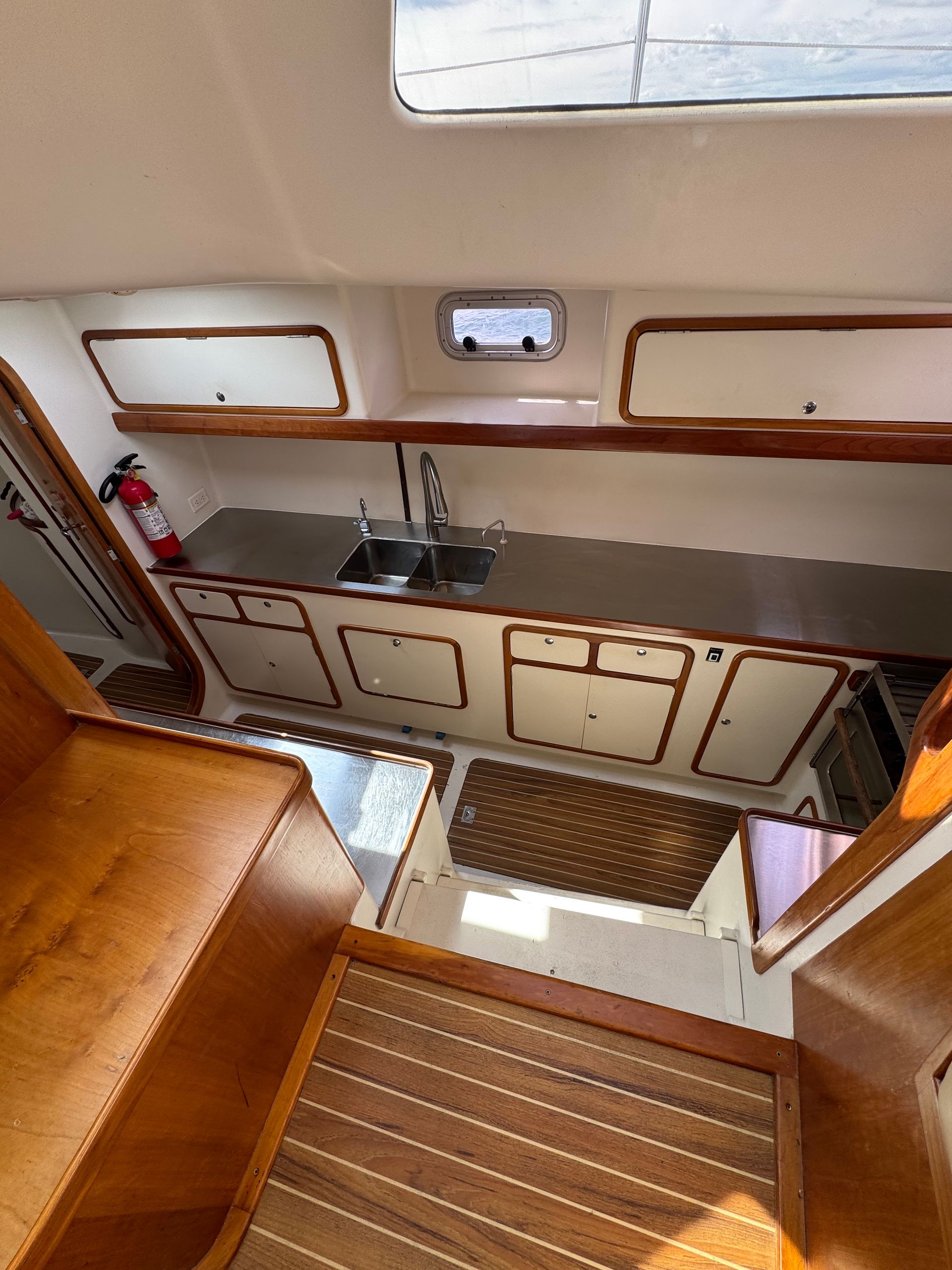

Galley

Stepping down into the starboard side hull you enter the galley for Zen that features white laminated cabinets and counters offset by teak trim and hand rails for safe movement below. Noticeable features of the Galley include:

• Stainless steel counters throughout - 2022

• (2) Overhead opening hatches (See Decks)

• Overhead lighting

• Custom hand hold aft of steps

• Storage lockers above work surfaces

• Opening port-light

• Force-10 (4) burner propane stove

• Sharp Carousel microwave oven

• Stainless steel deep double basin sink

• Single lever hot/cold pressurized fresh water mixing head

• Seagull IV X-F1 drinking water filter mounted at galley sink

• Manual fresh water Whale foot pump with tap

• Manual salt water Whale foot pump with tap

• Built in trash container

• Side by side fridge/freezer with temperature gauges and adjustable shelves (7 & 3 cubic feet capacity)

• SeaFrost Air cooled refrigeration and freezer compressors and plates - 2022

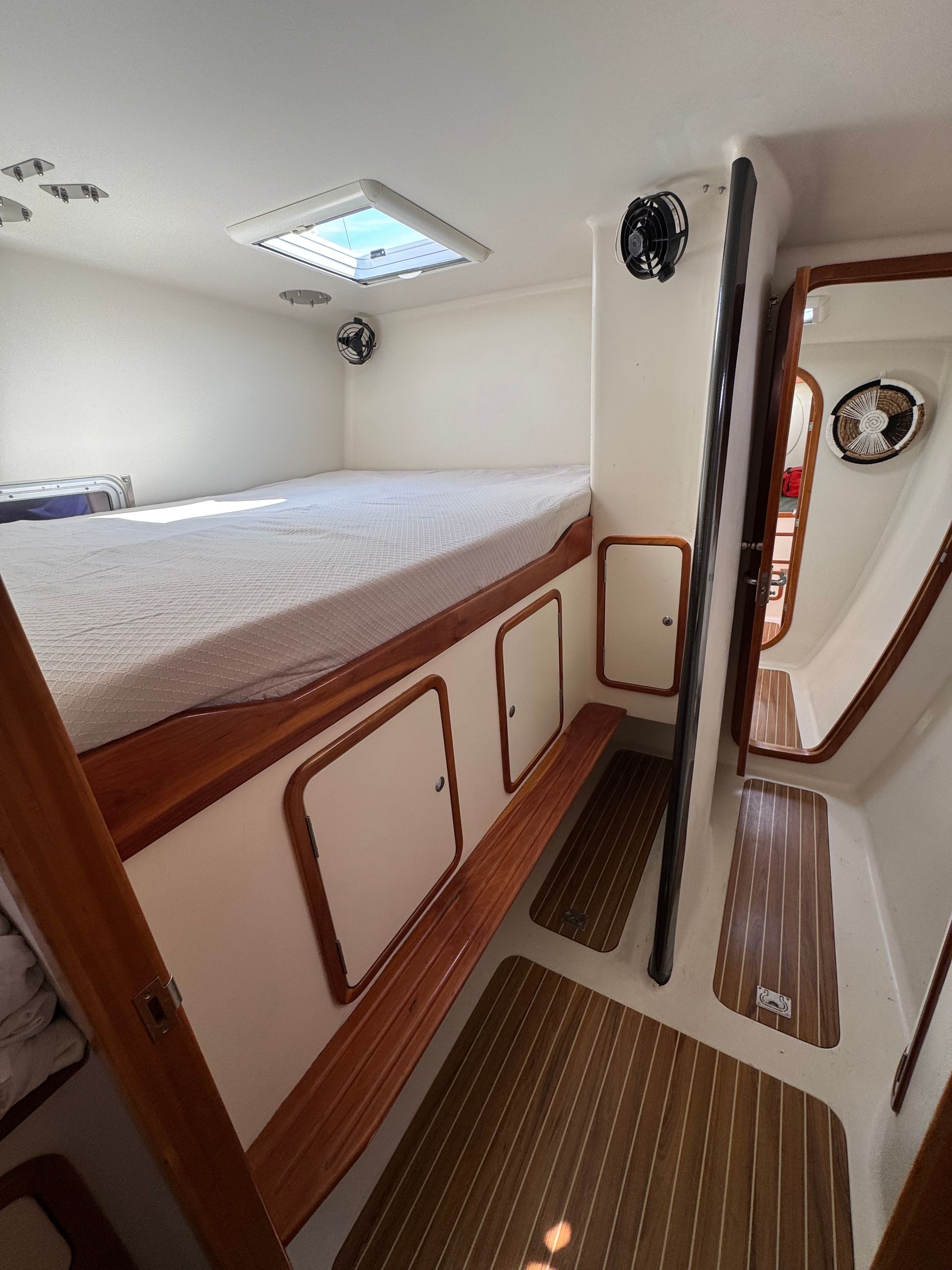

Starboard Midship Queen Cabin

• Overhead opening hatch (See Decks)

• Ocean Air sunshade with bug screen

• Overhead lighting

• (2) 12-Volt Hella fans

• Opening port light

• (2) Reading lights above bunk

• Upholstered queen bunk

• Hanging locker

• Drawer and locker storage

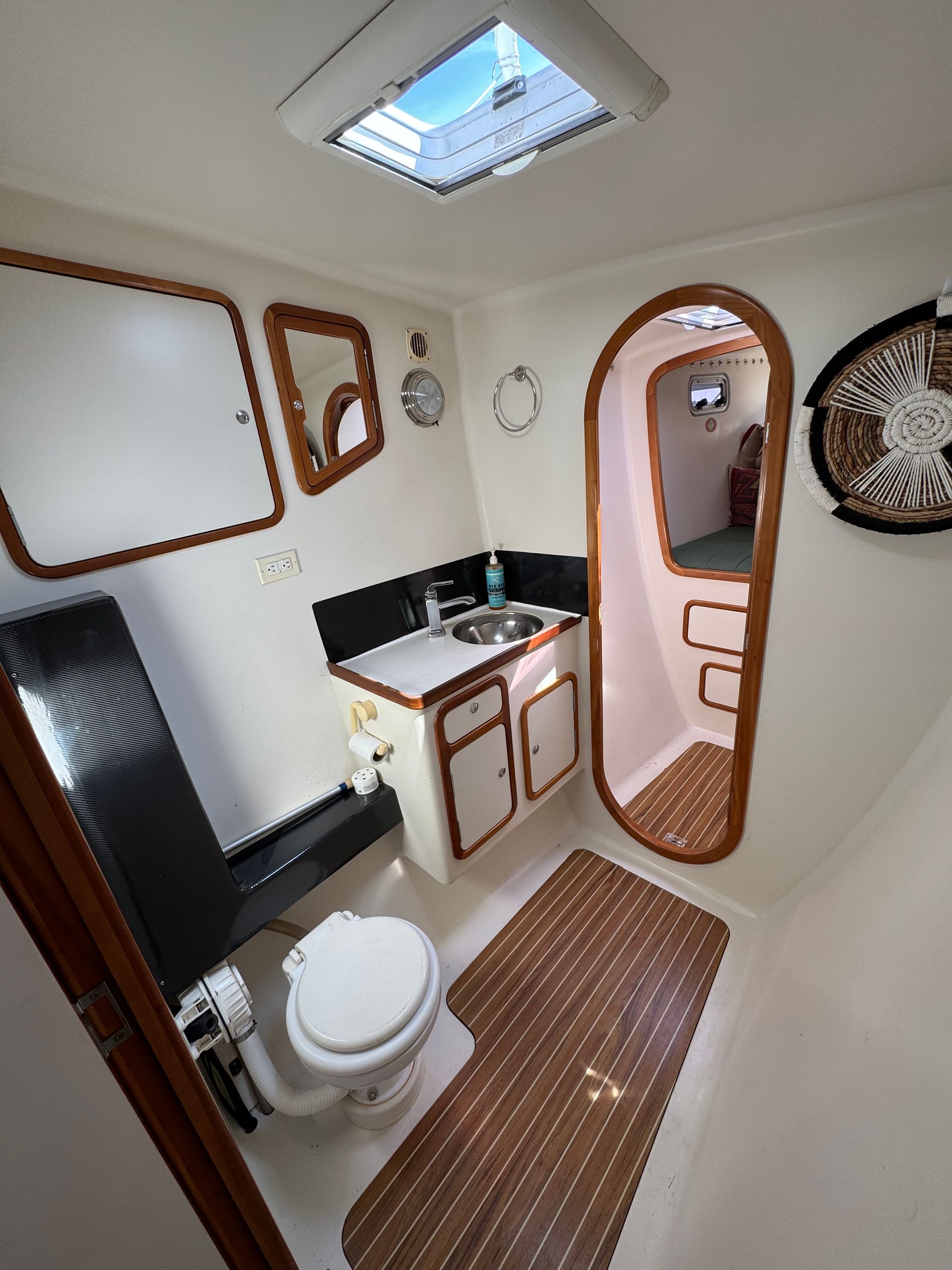

Starboard Head

• Overhead opening hatch (See Decks)

• Ocean Air sunshade with bug screen

• Overhead lighting

• Towel and hand towel rack

• Lavac marine head with Y-valve

• Vanity mirror

• 110-Volt outlets

• Storage locker above and below sink

• Single basin stainless sink

• Single lever hot/cold freshwater pressurized mixer head

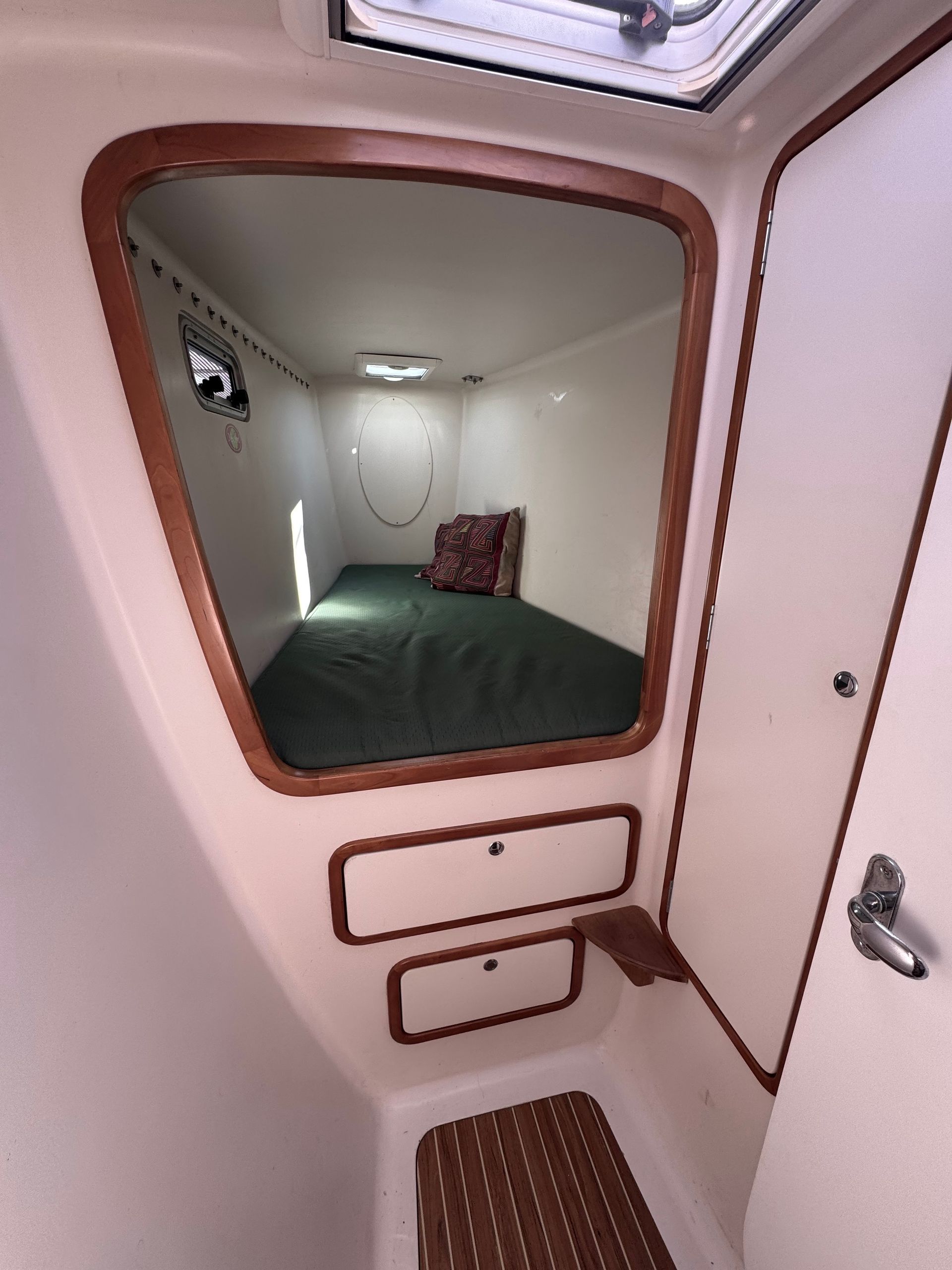

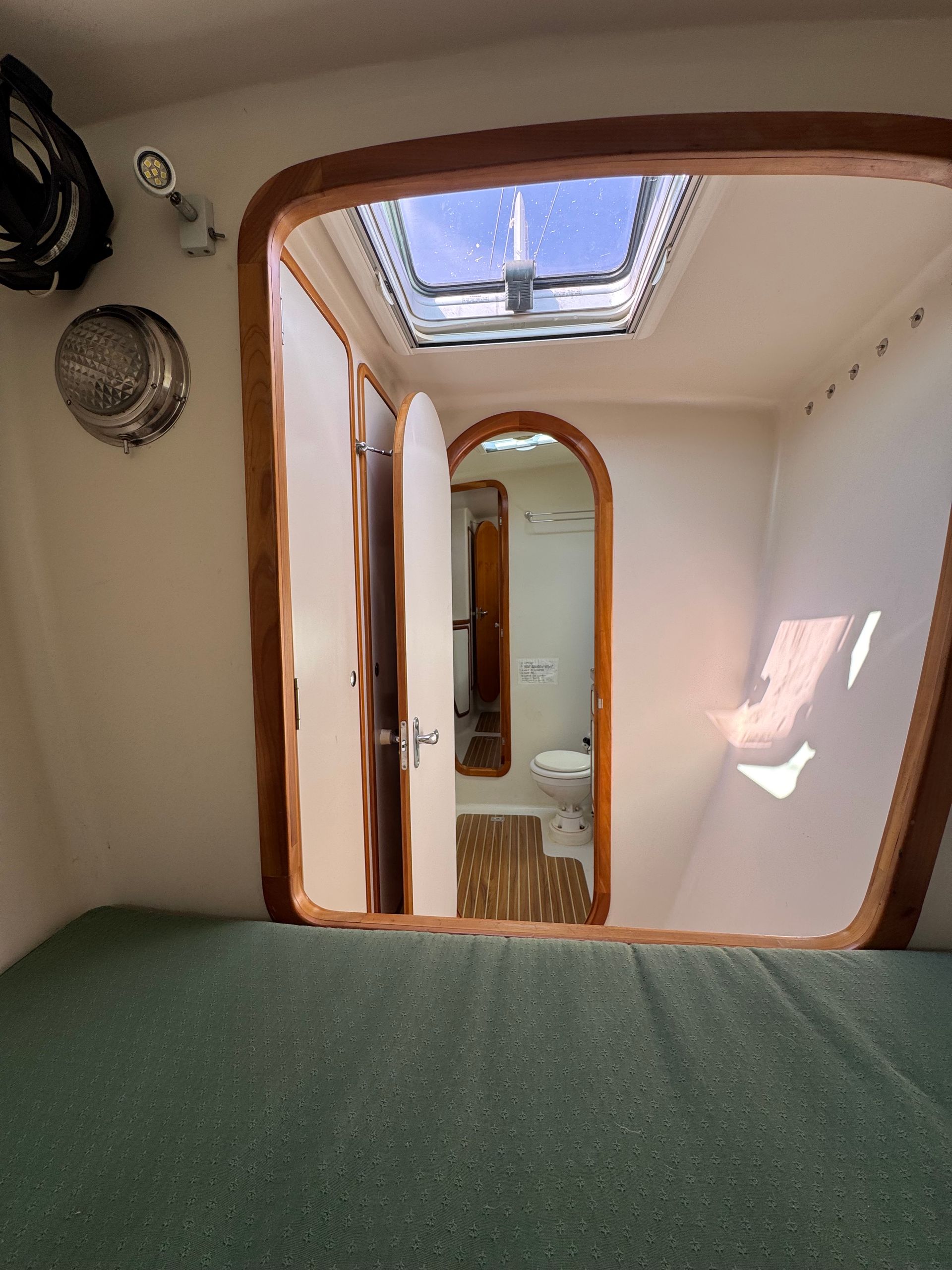

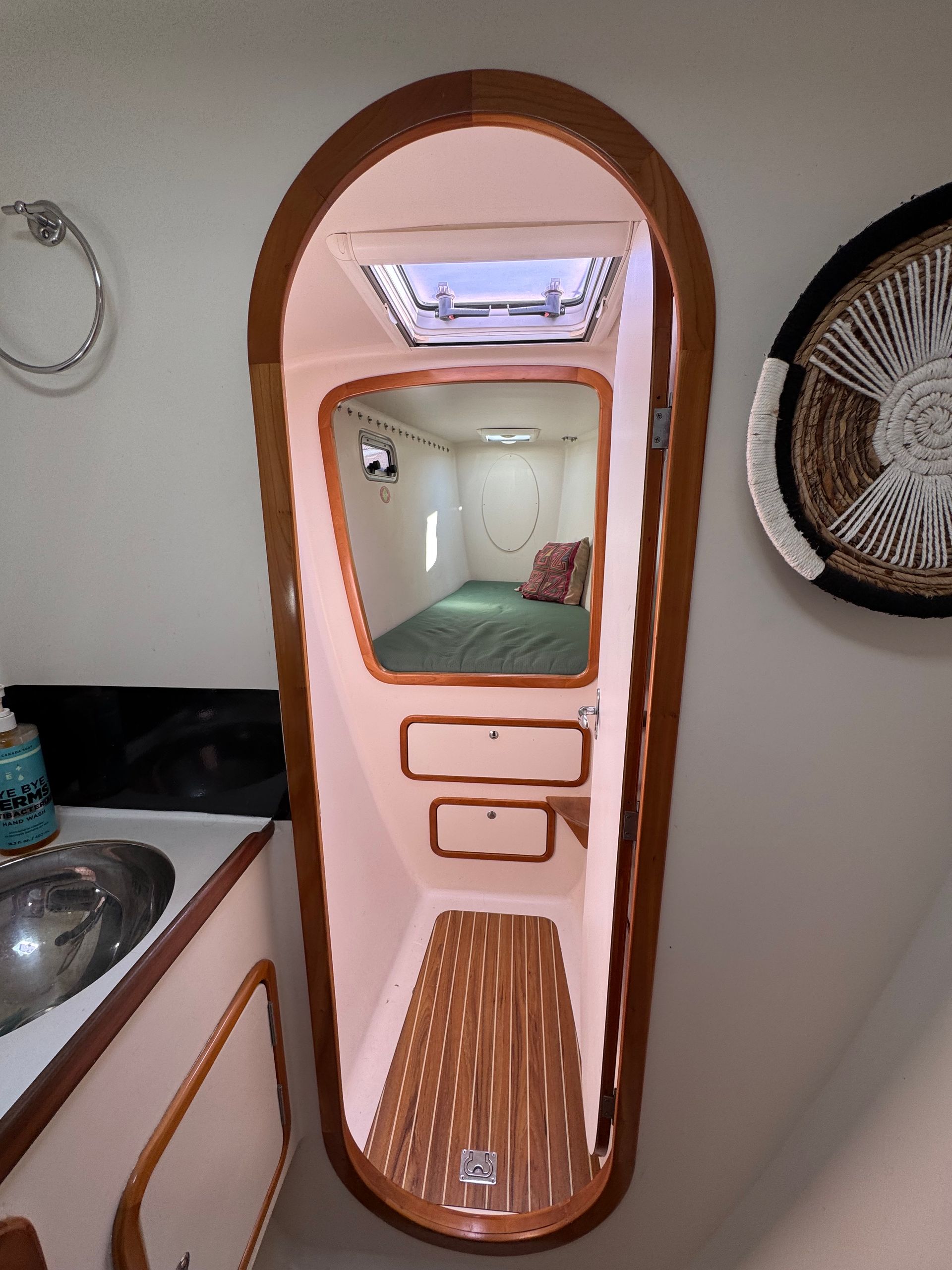

Starboard Forward Cabin

• (2) Overhead opening hatches (See Decks)

• (2) Ocean Air sunshade with bug screen

• Opening port light

• Upholstered single bunk cushion

• Hanging lockers

• Storage below bunk

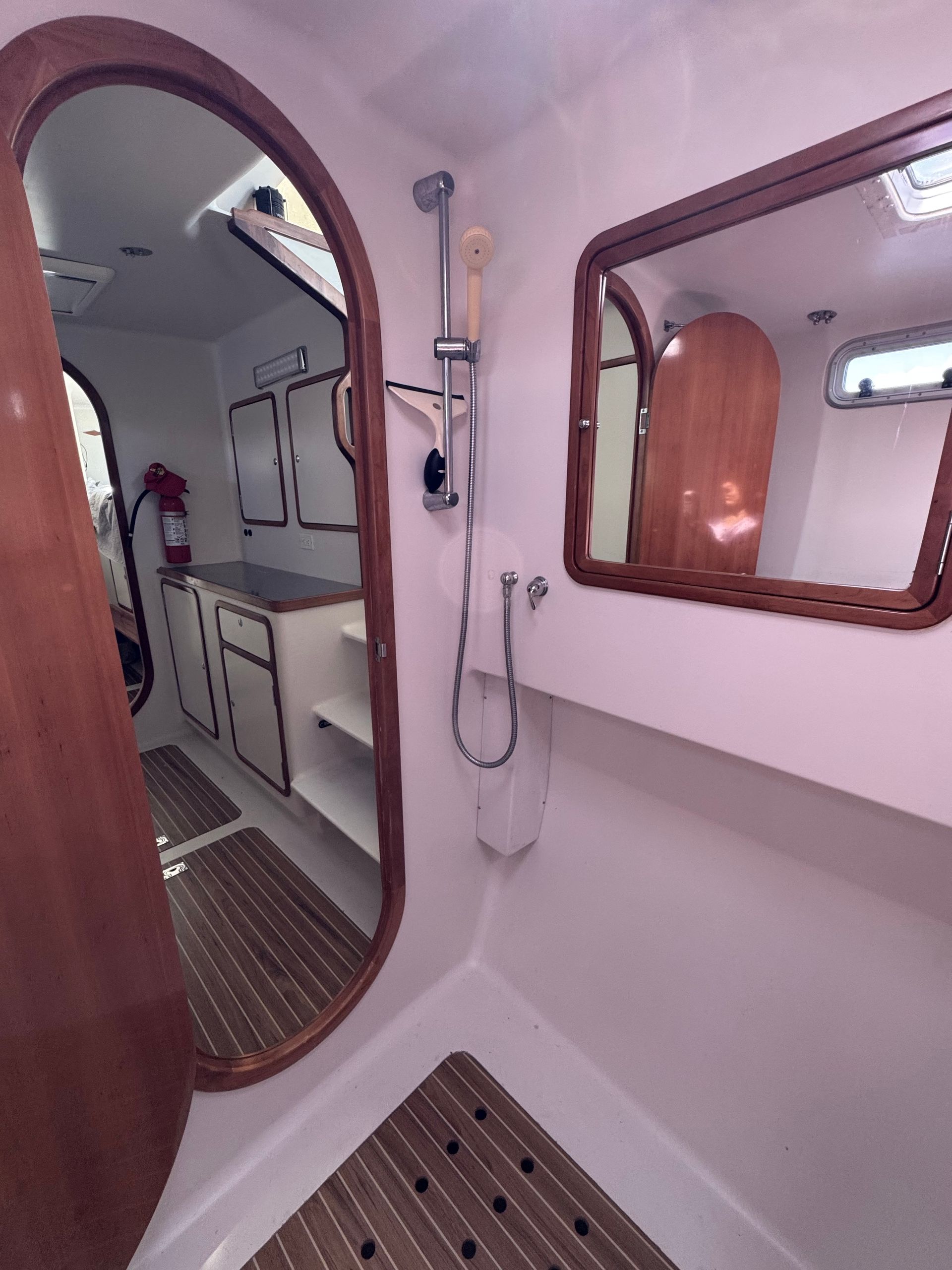

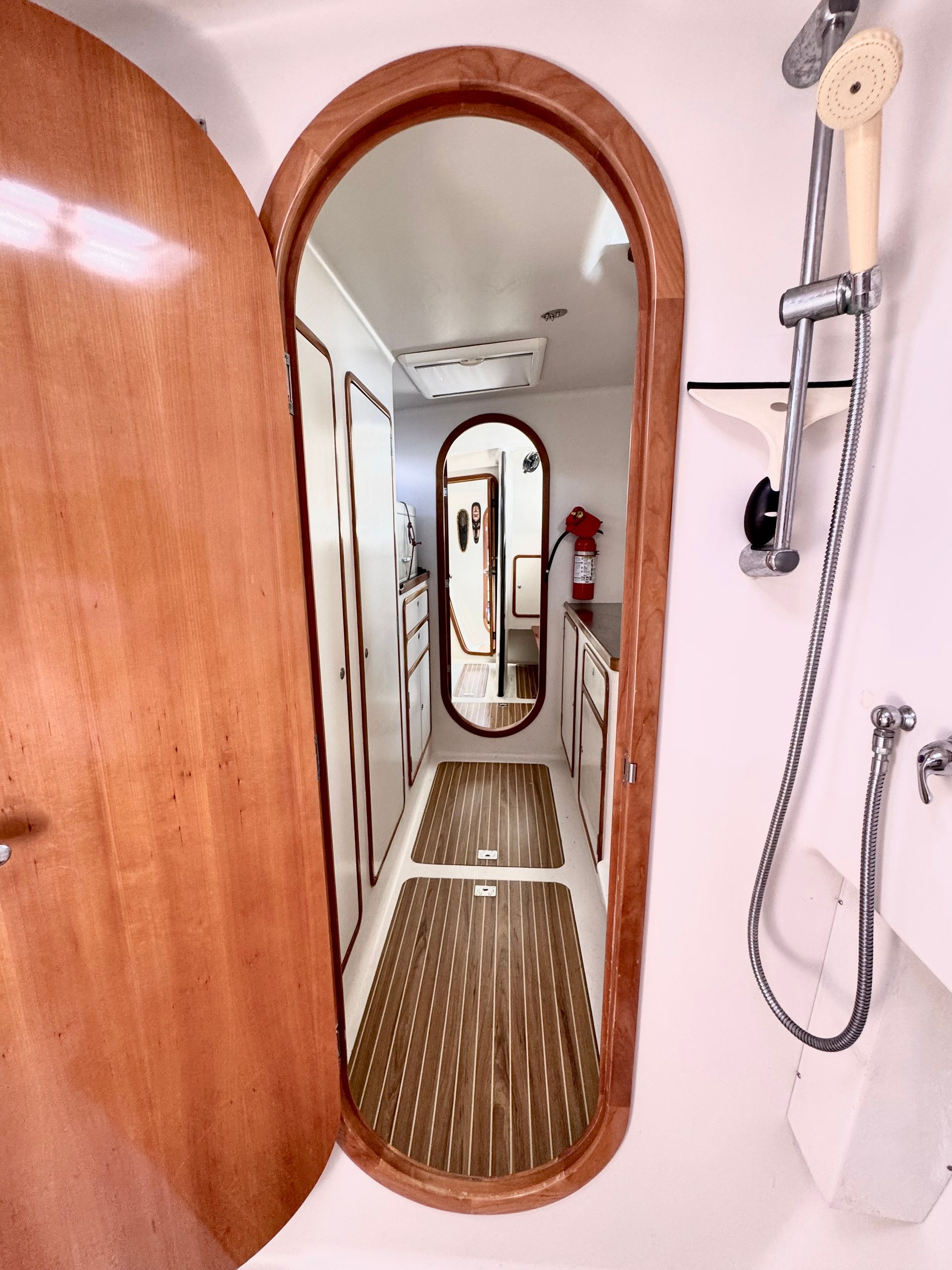

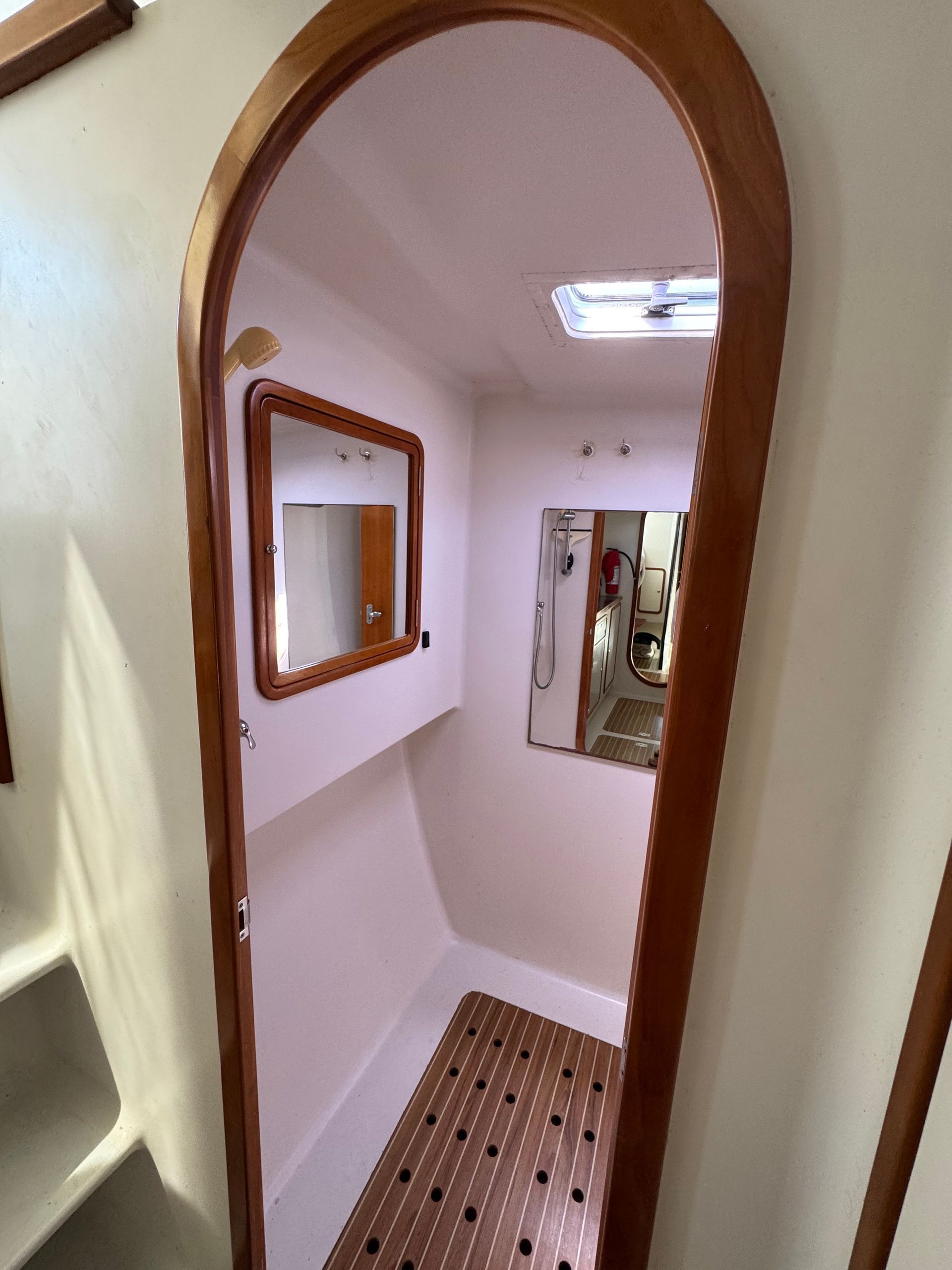

Shower

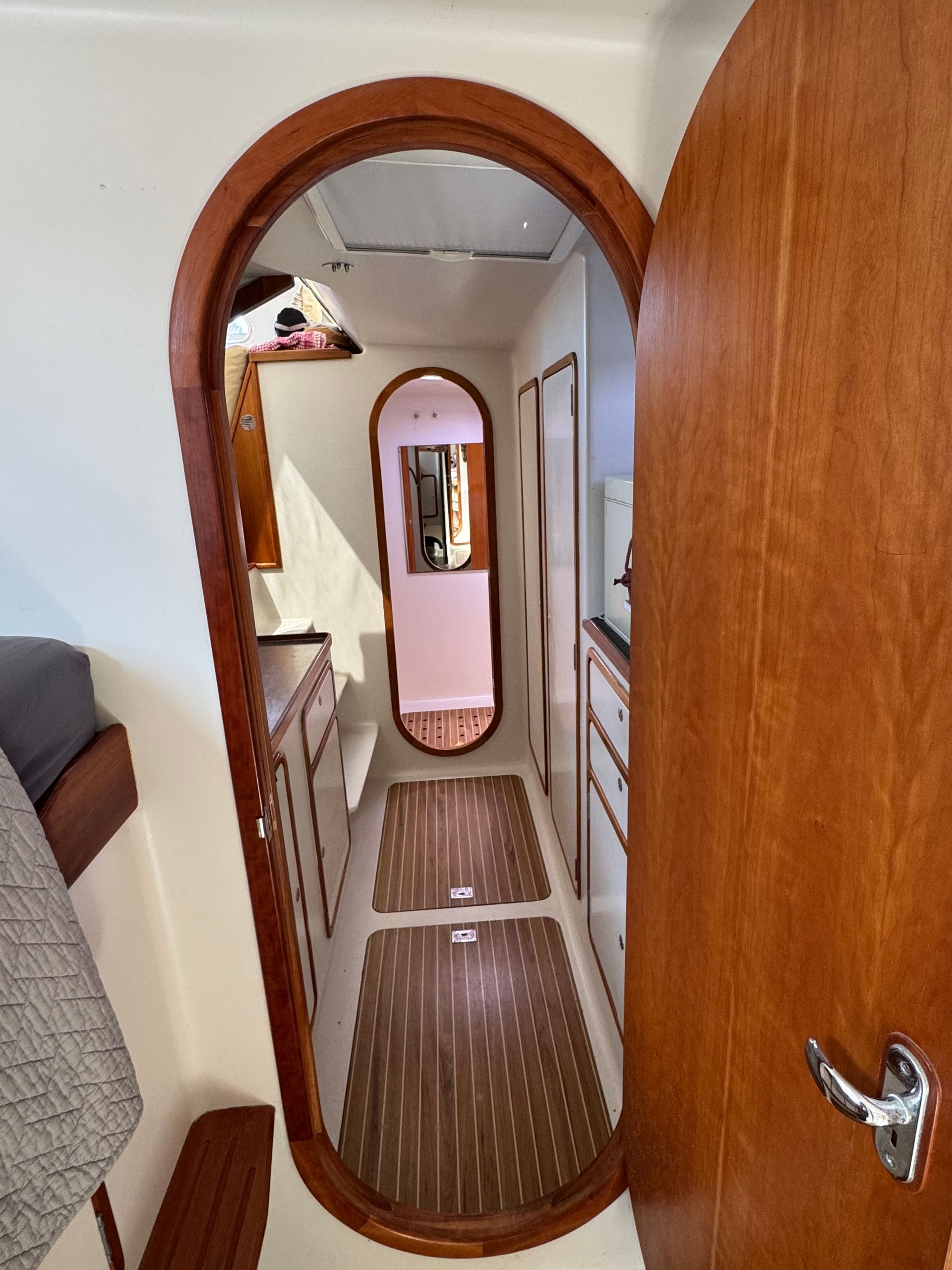

Stepping down into the port hull you enter Zen's Work Shop. Aft of this area is a large walk in shower compartment that features:

• Semi-gloss polyurethane finish for easy cleanup

• Over head opening hatch (See Decks)

• Opening port light

• Towel hooks

• (2) Mirrors

• Medicine cabinet inboard

• Shower wand with flexible hose and adjustable mounting connection

• Single lever hot/cold freshwater mixing controls

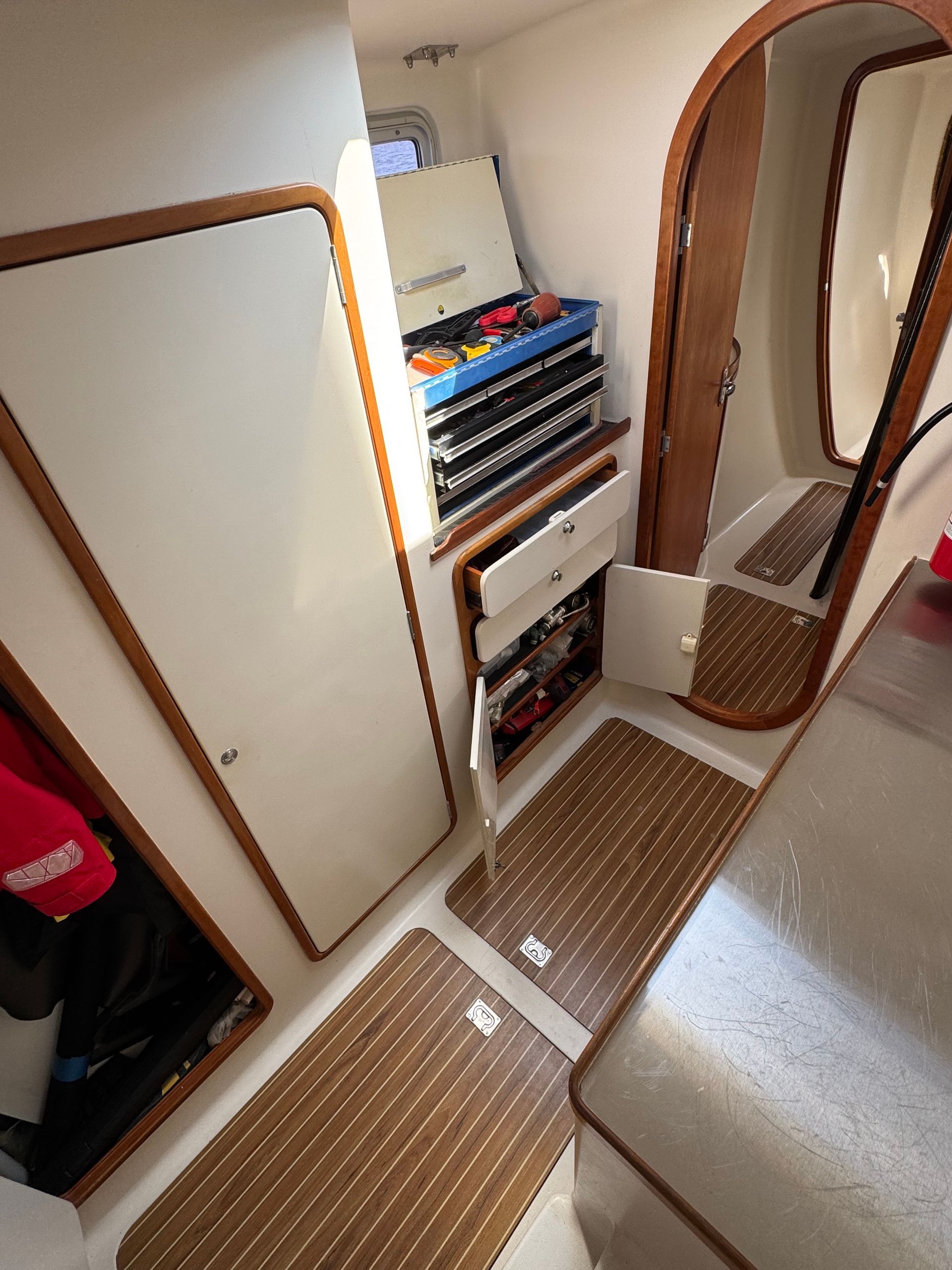

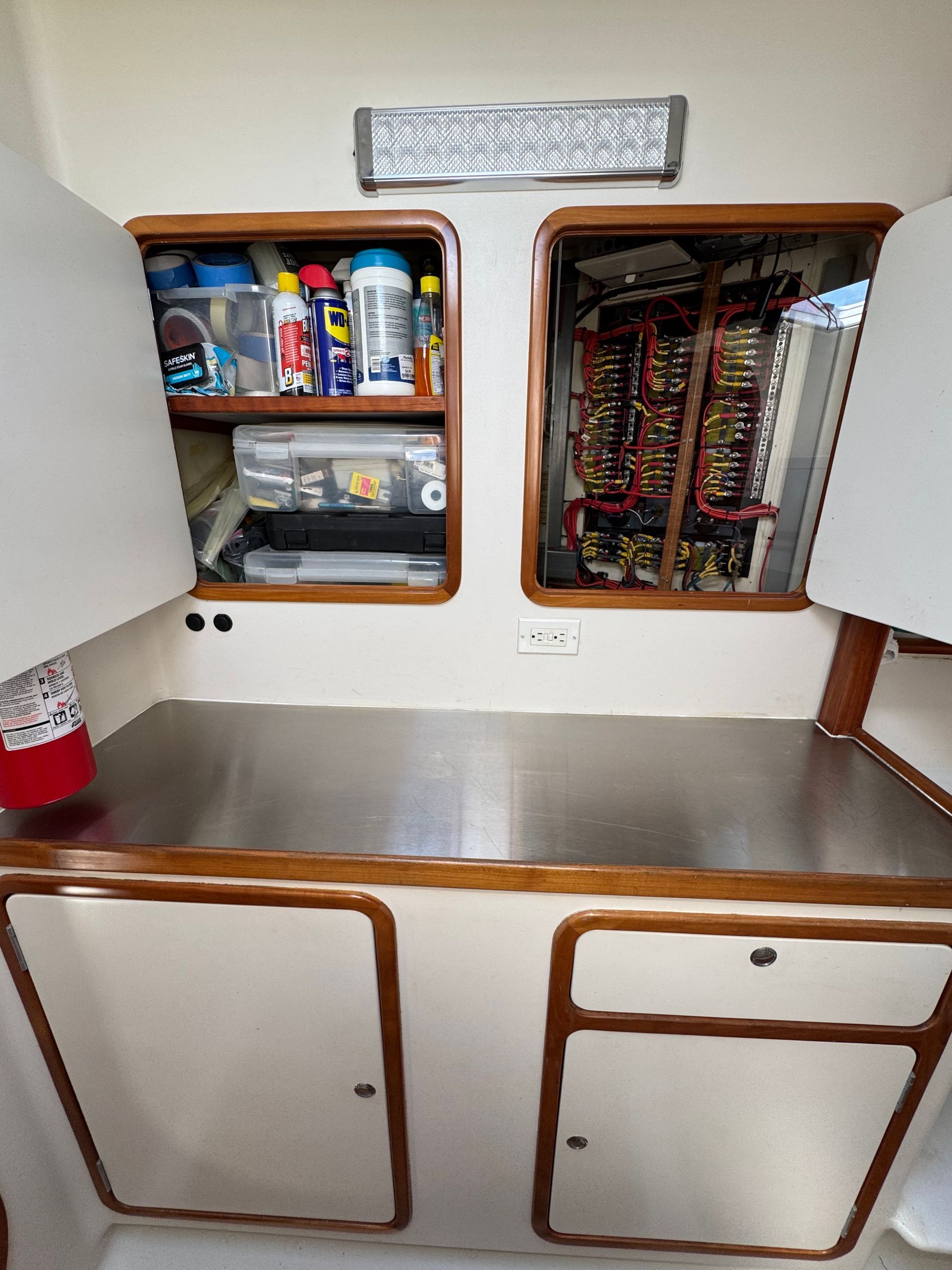

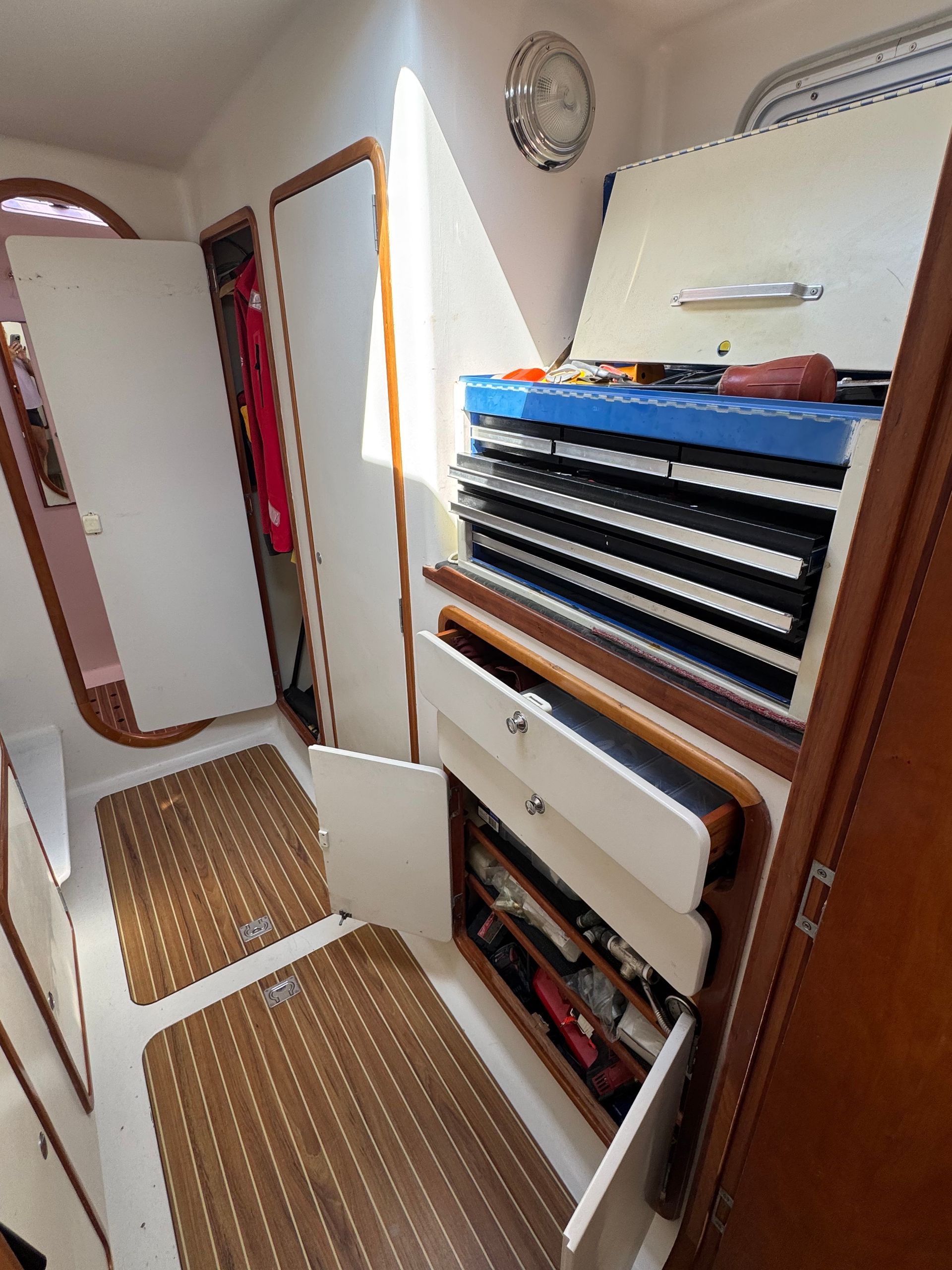

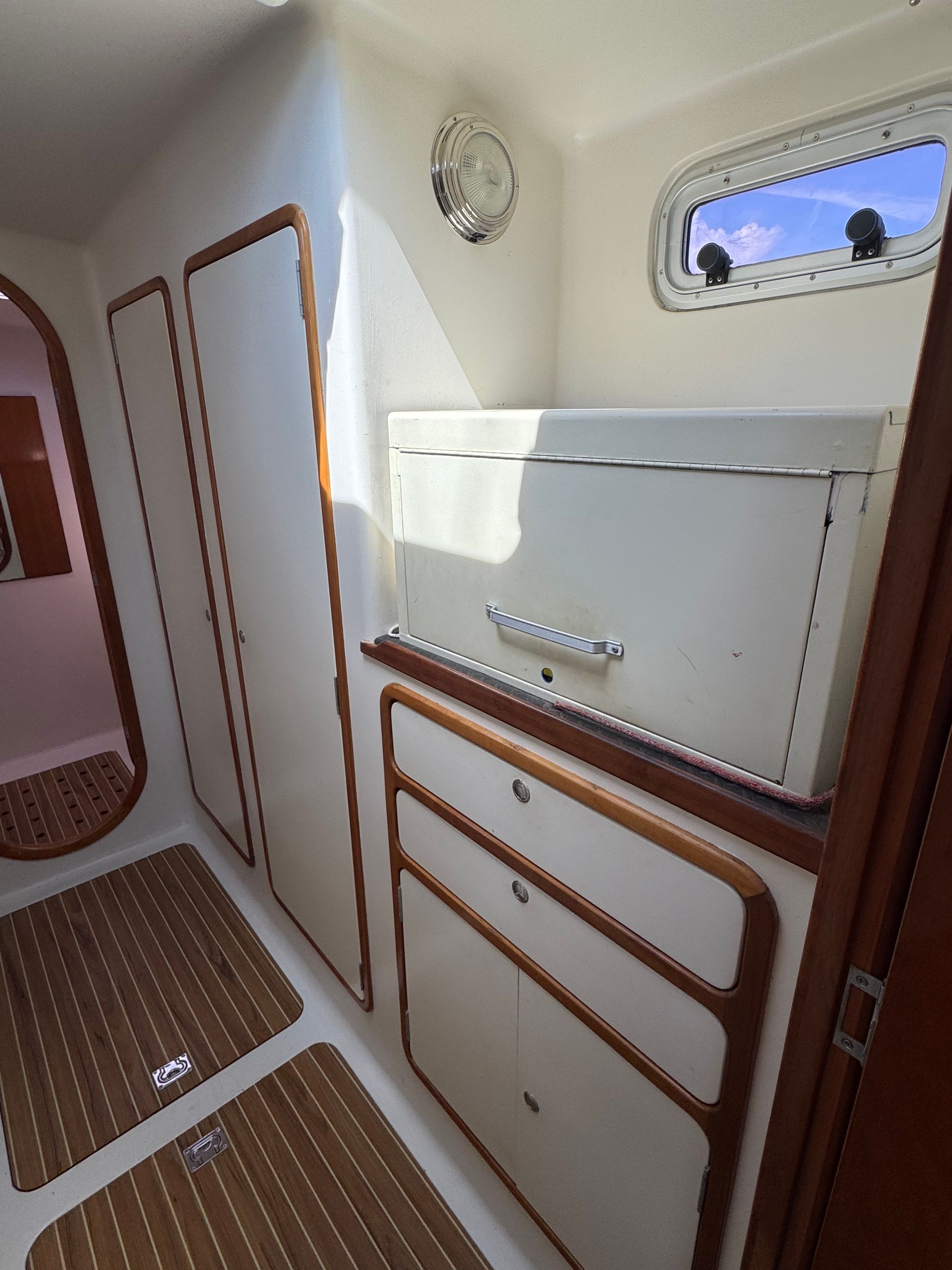

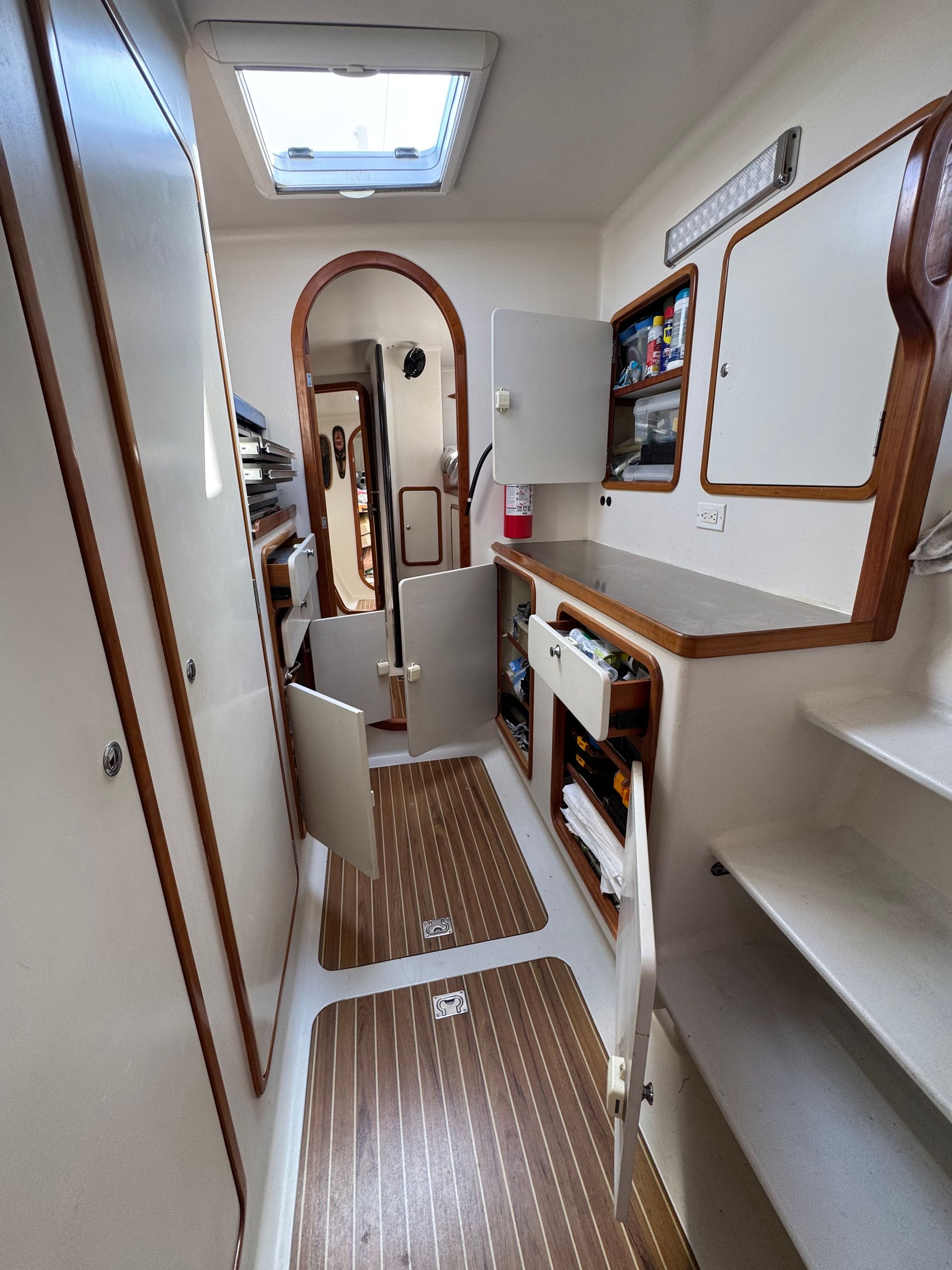

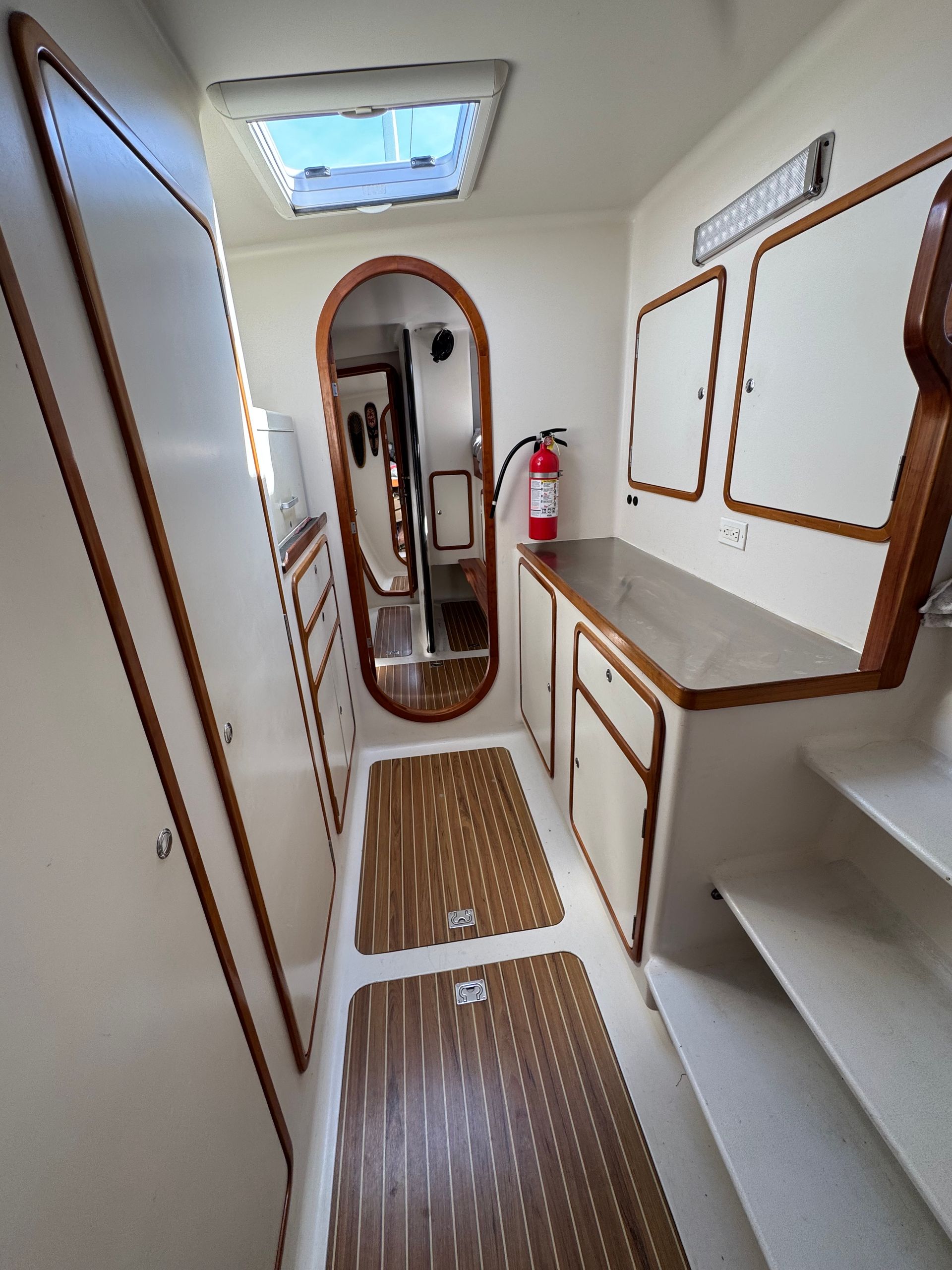

Workshop

At the base of the steps into the port hull is Zen's Work Shop room that features additional storage and a work bench. Also of note:

• Opening port overhead (See Decks)

• Ocean Air sunshade with bug screen

• Opening port light

• Twin storage lockers

• Overhead lighting

• 110-Volt outlets

• Storage lockers above work surfaces

• Stainless steel counters (2022) with cutout and backing plate for a vice clamp

• Tool lockers/drawers below work surface

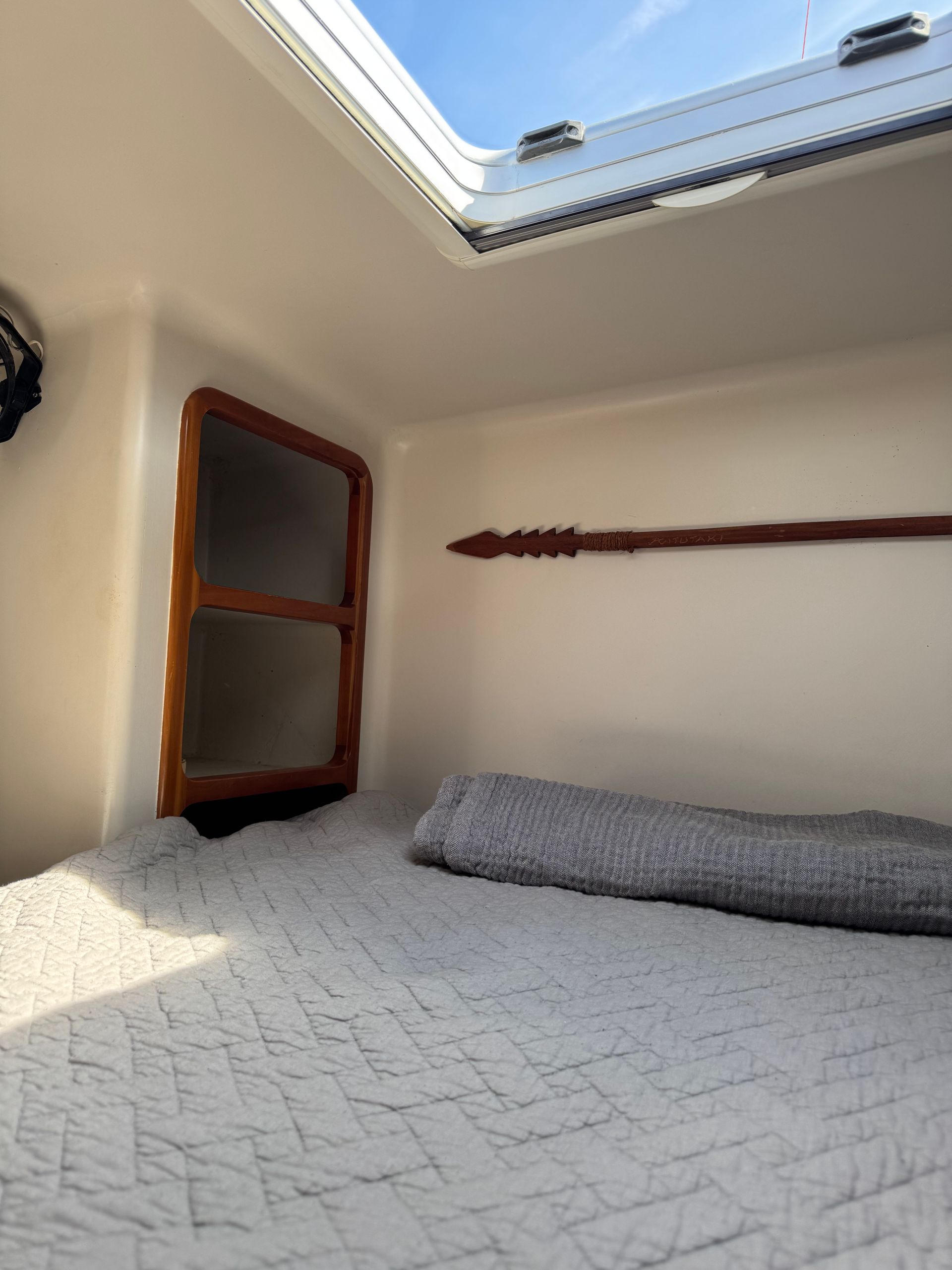

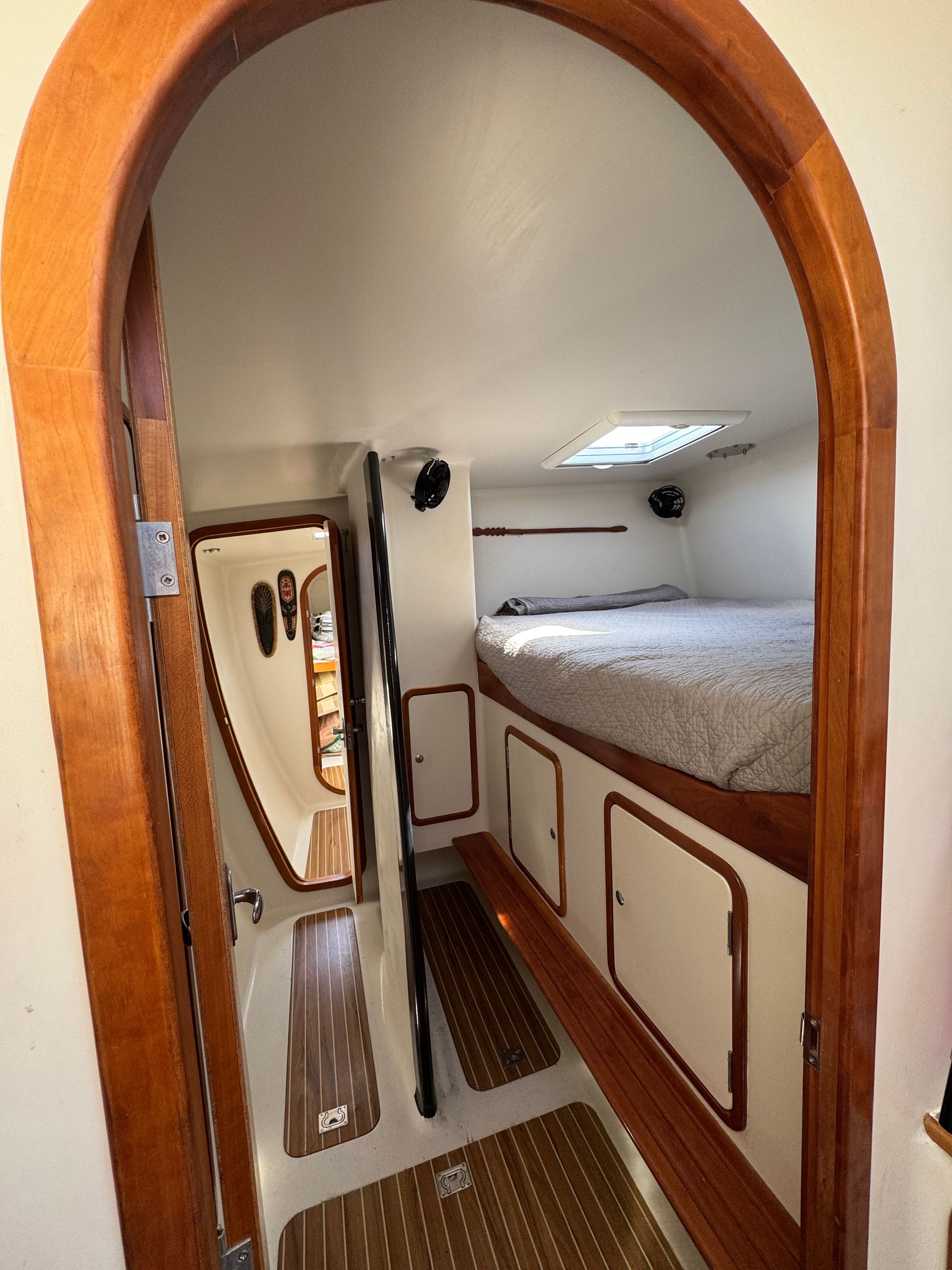

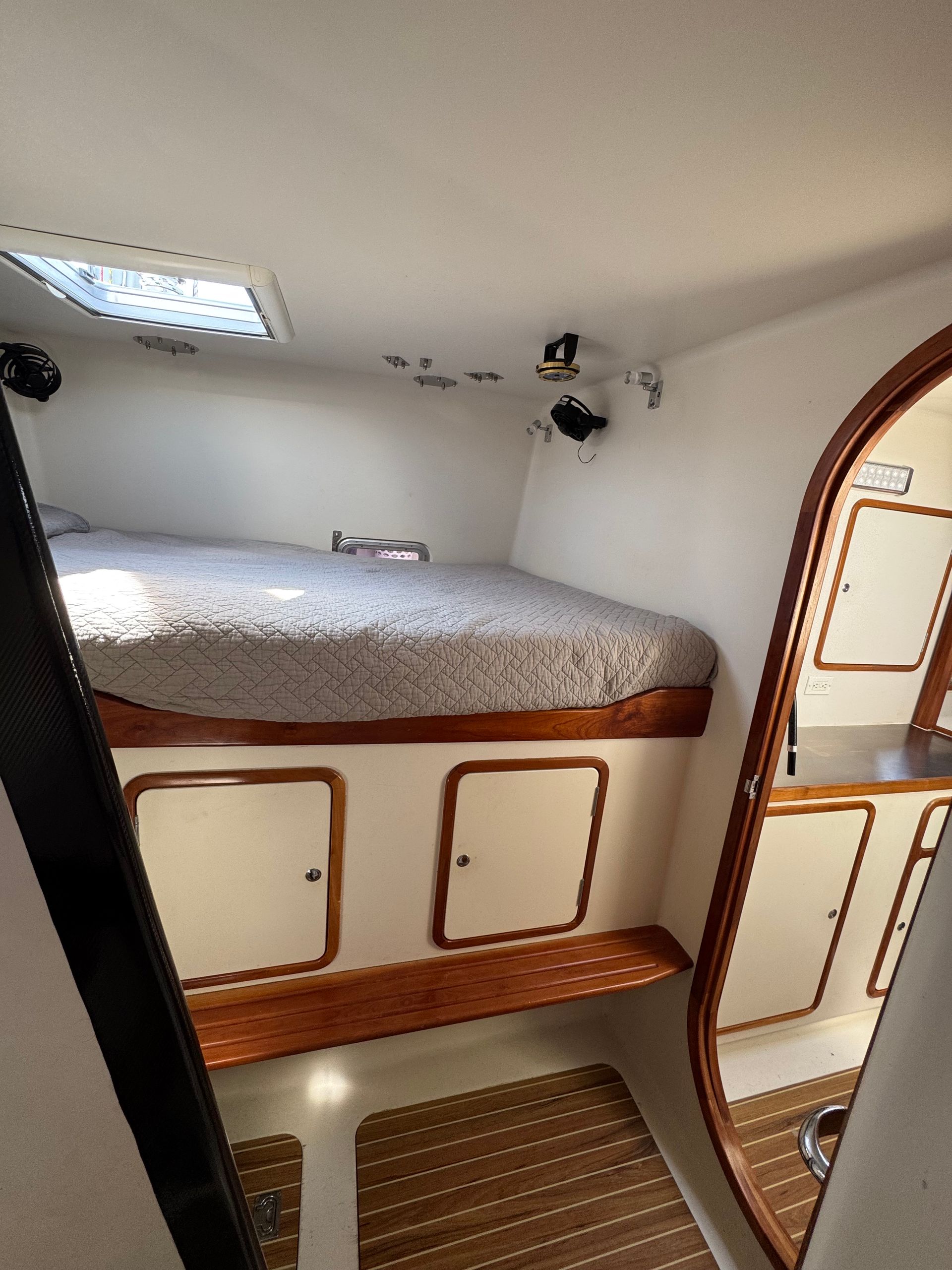

Port Midship Queen Cabin

• Overhead opening hatch (See Decks)

• Ocean Air sunshade with bug screen

• Overhead lighting

• (2) 12-Volt Hella fans

• Opening port light

• (2) Reading lights above bunk

• Custom memory foam queen mattress

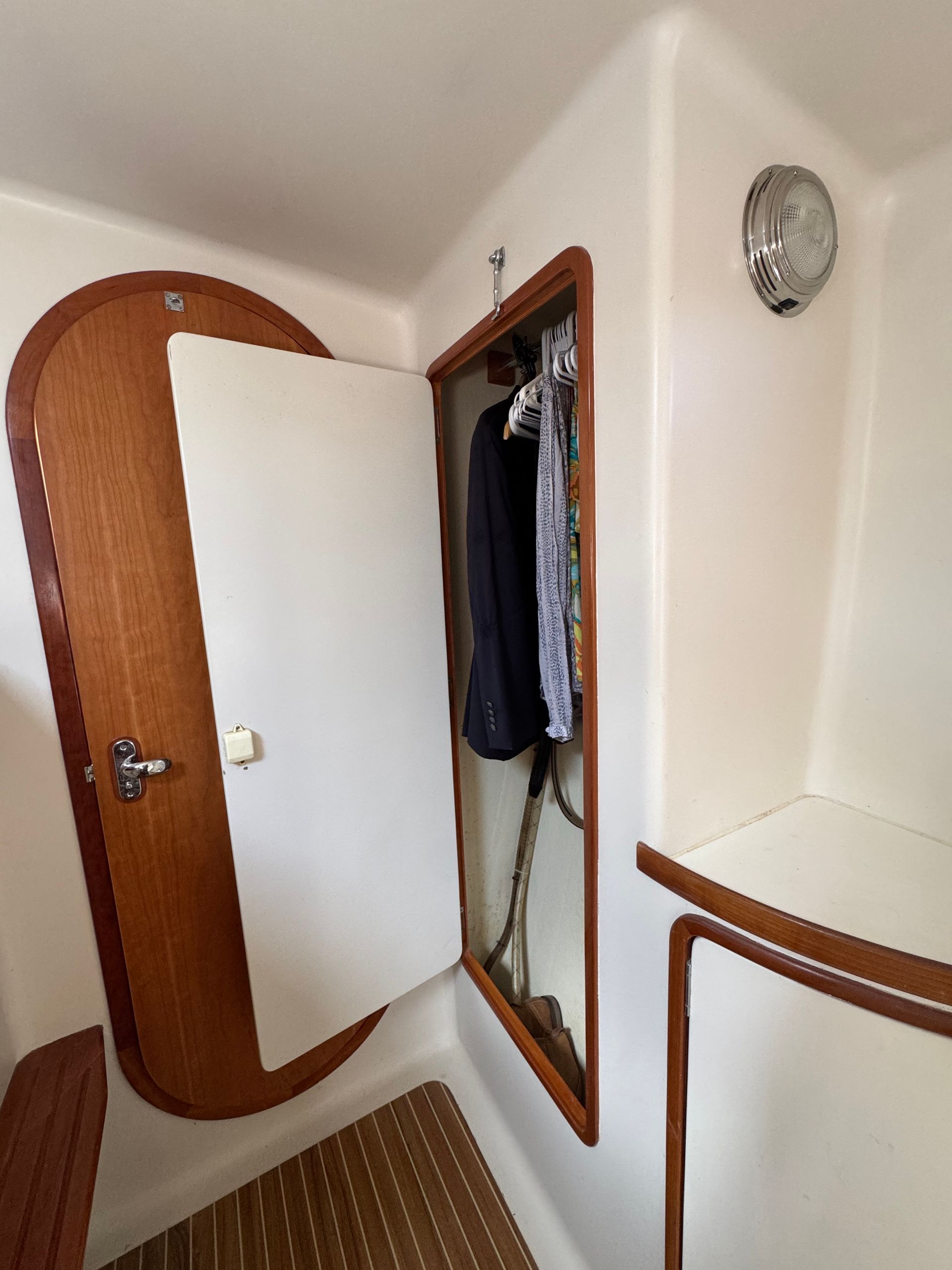

• Hanging locker

• Drawer and locker storage

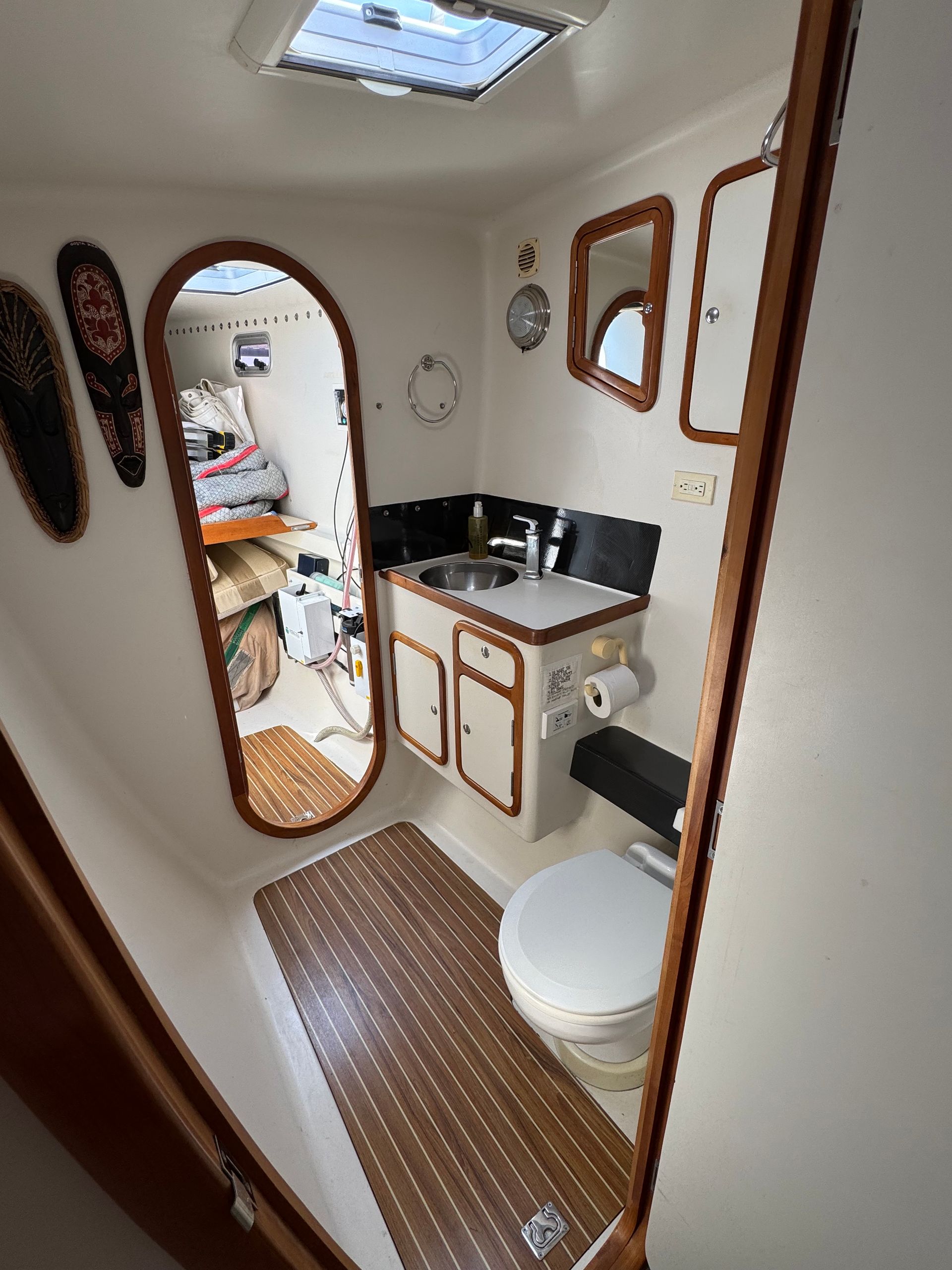

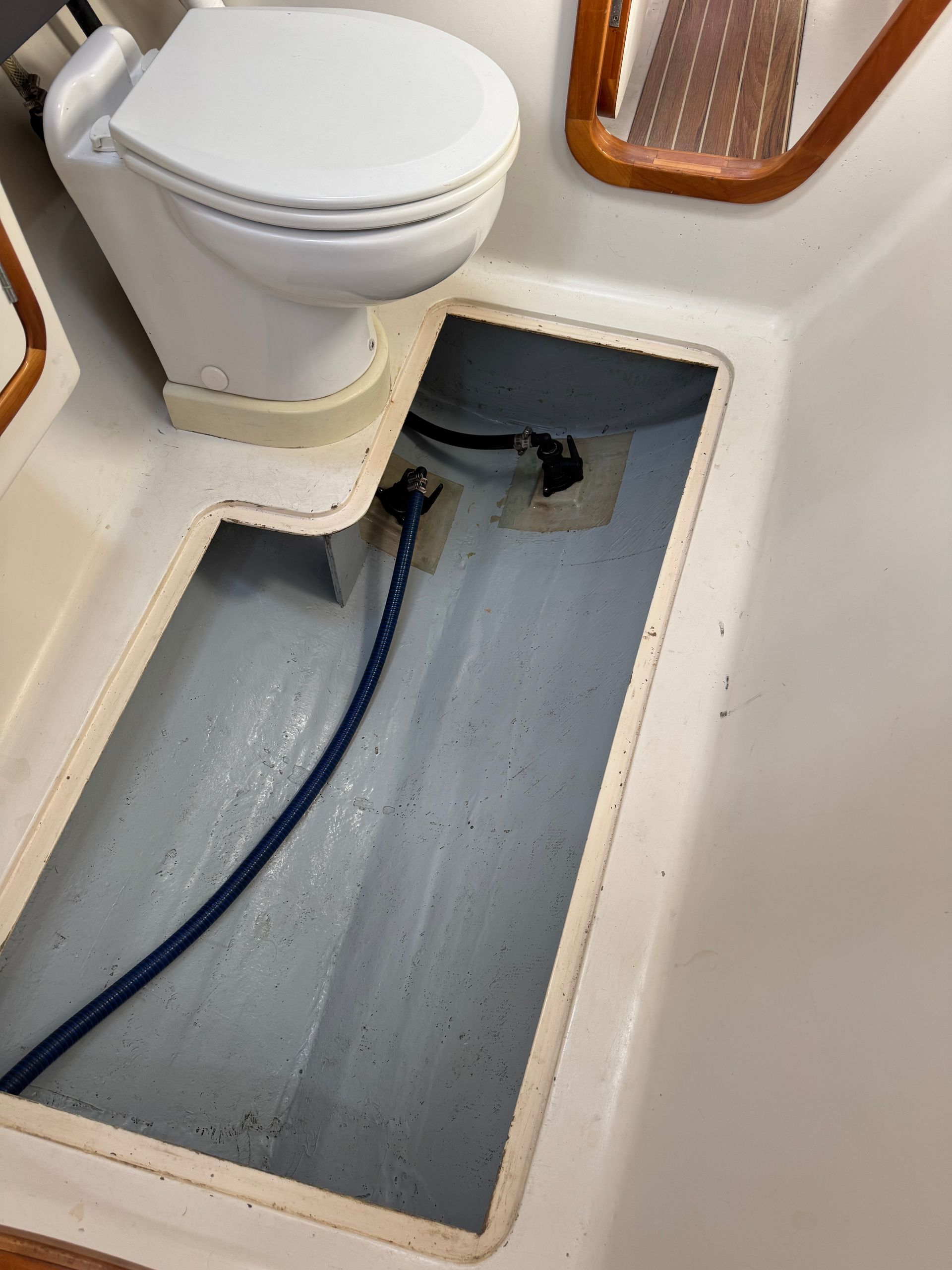

Port Head

• Overhead opening hatch (See Decks)

• Ocean Air sunshade with bug screen

• Overhead lighting

• Towel and hand towel rack

• Raritan 12-volt Vortex Vac electric head with Smart Flush controls plumbed to a Y-valve

• Vanity mirror

• 110-Volt outlets

• Storage locker above and below sink

• Single basin stainless sink

• Single lever hot/cold freshwater pressurized mixer head

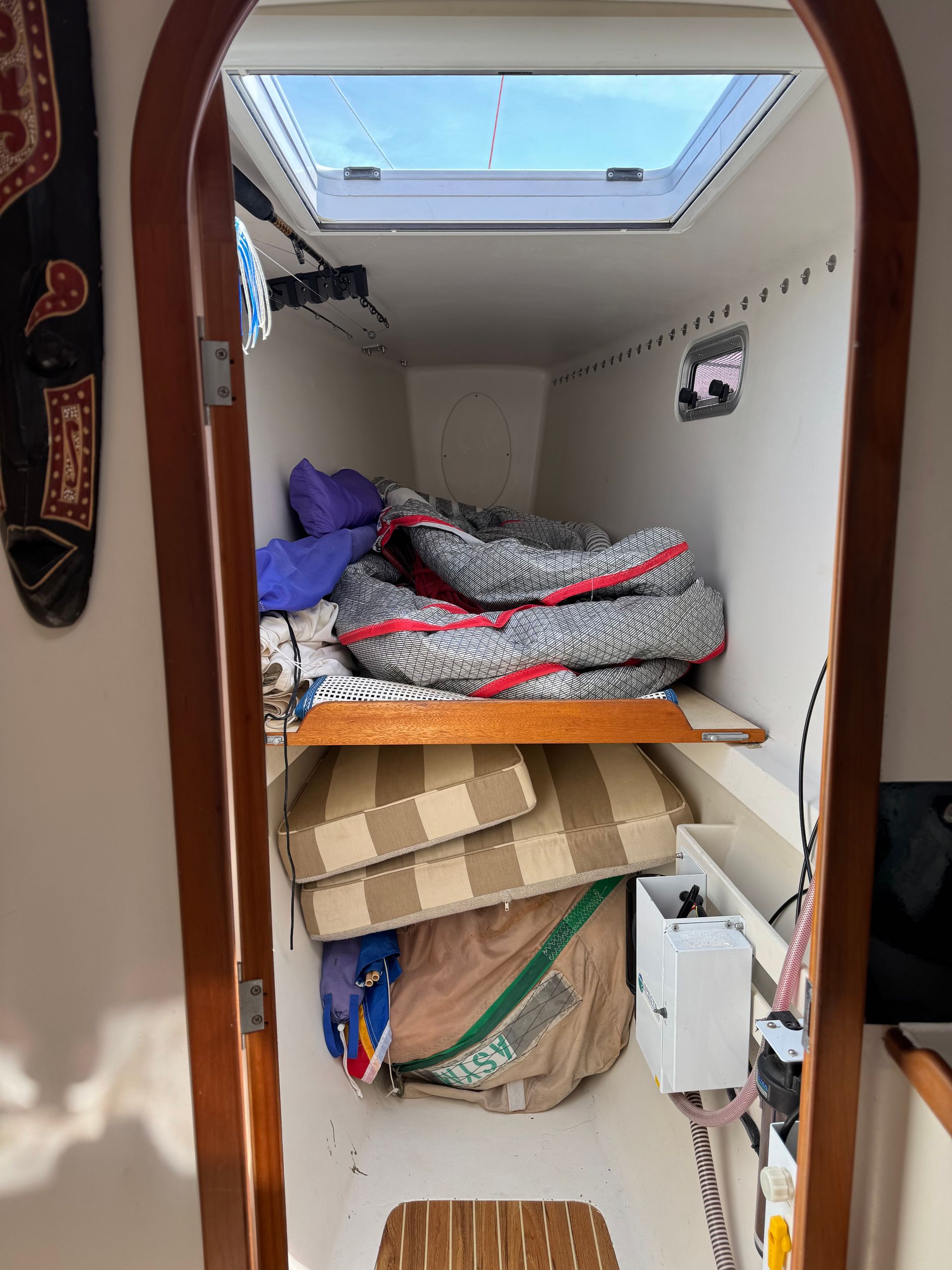

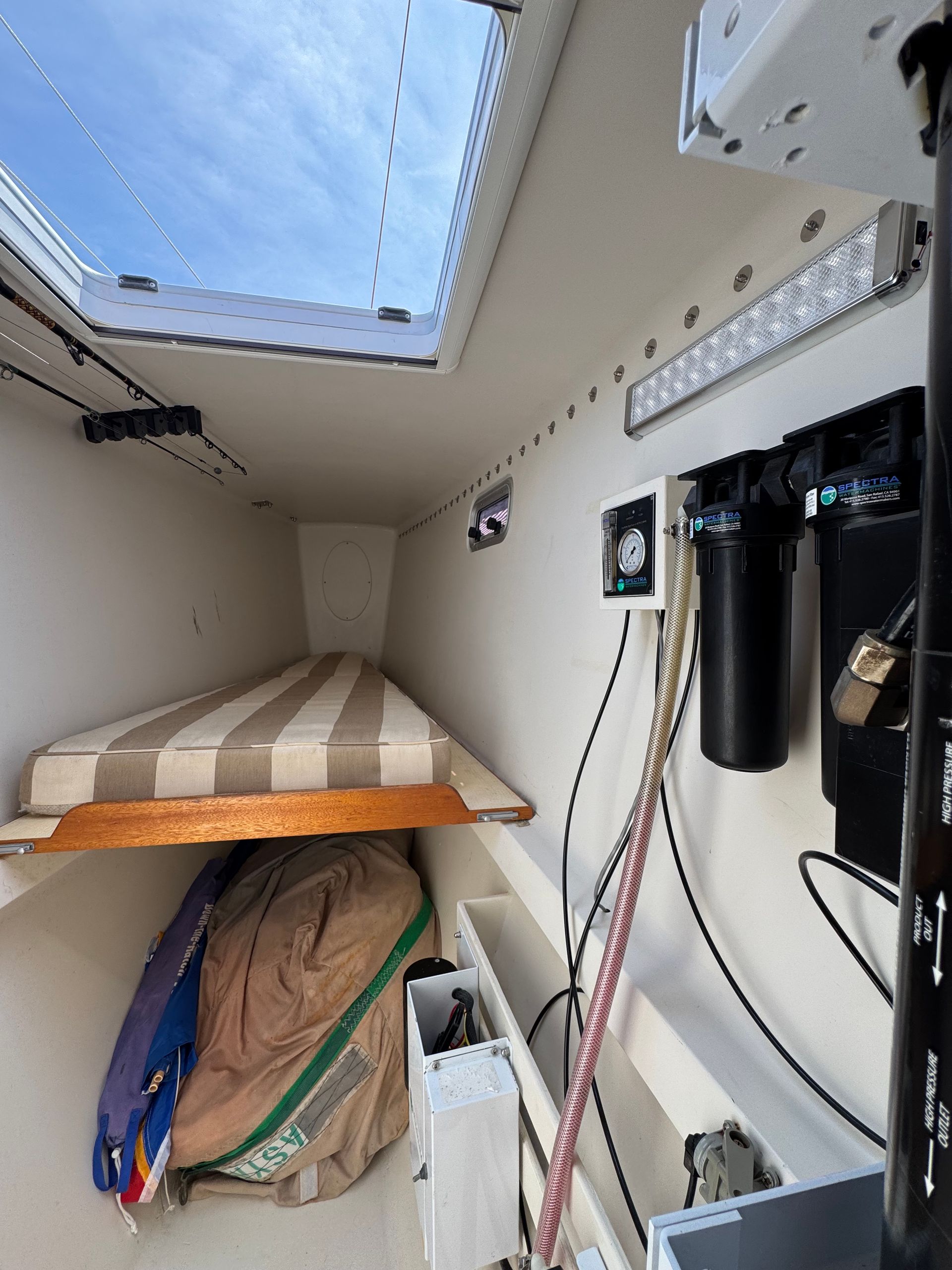

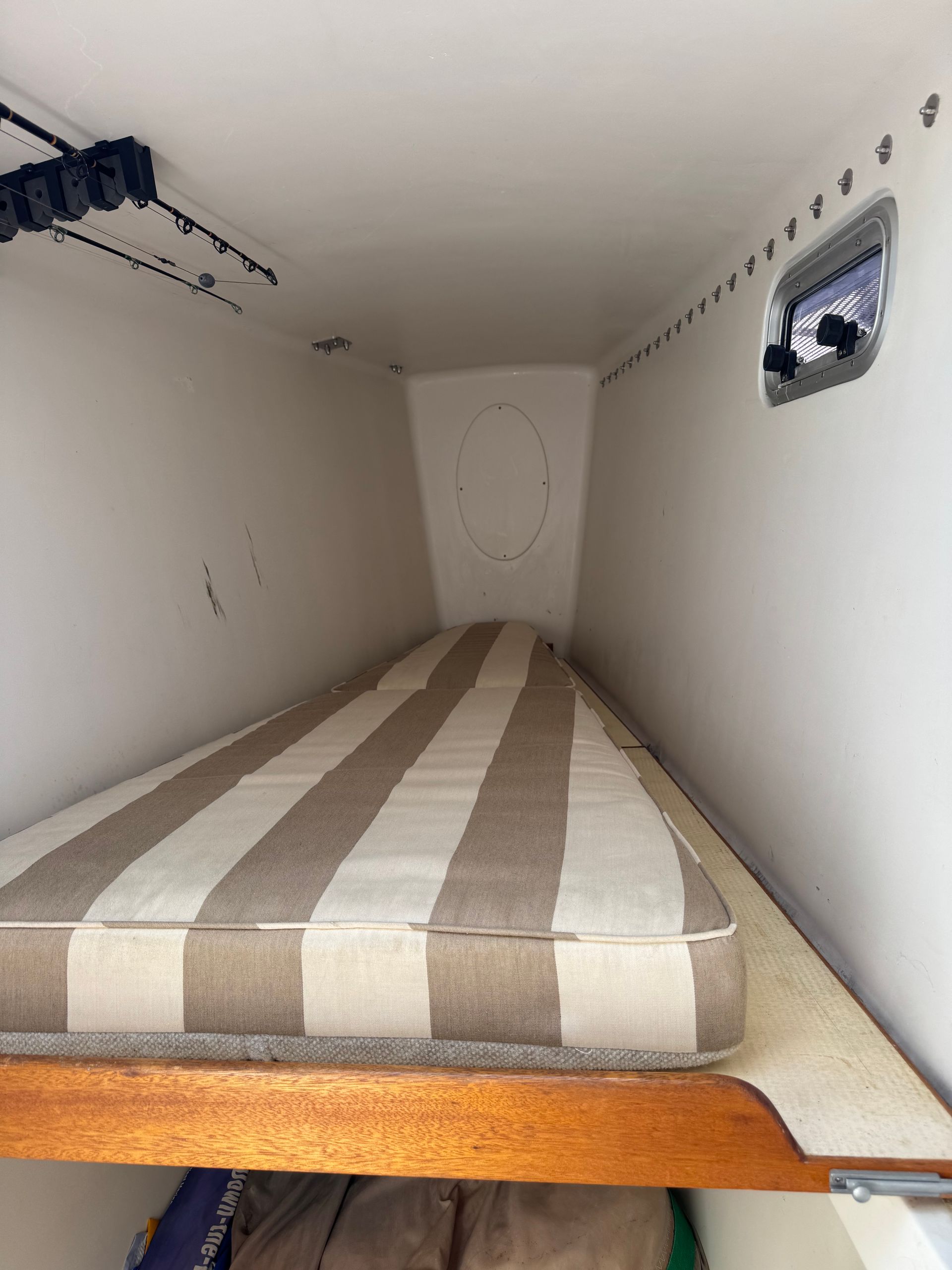

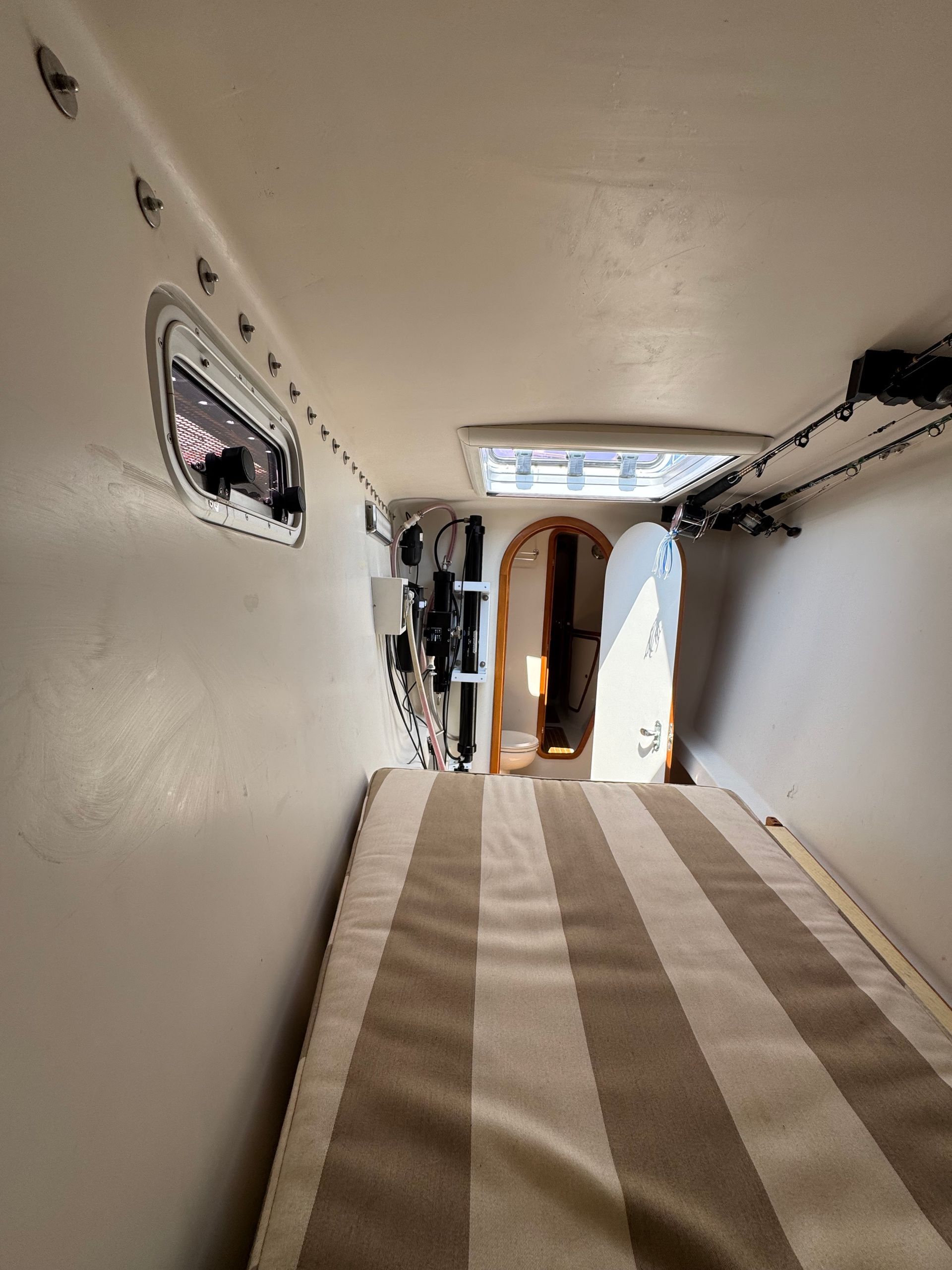

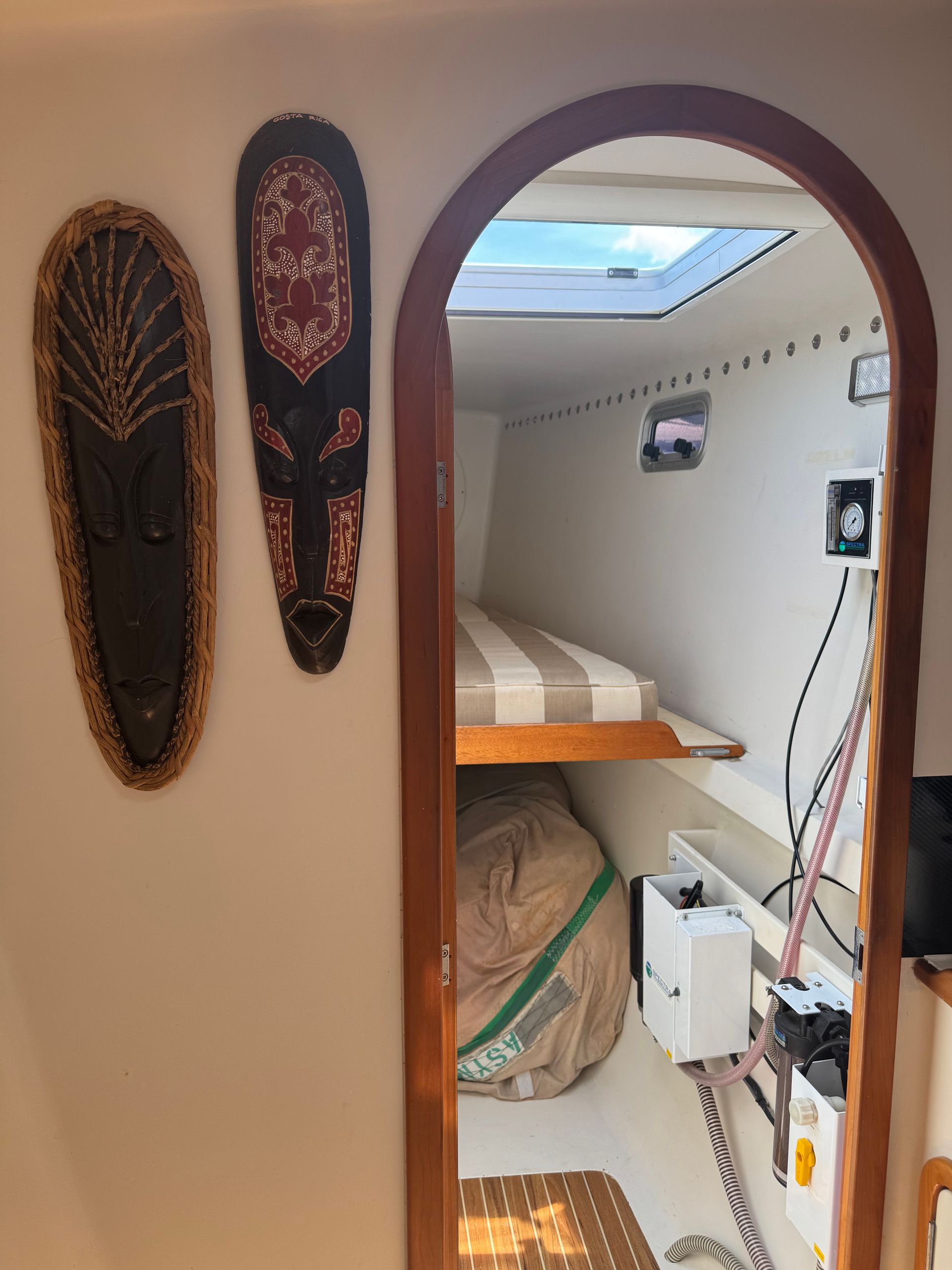

Port Forward Cabin

• Overhead opening hatches (See Decks)

• Ocean Air sunshade with bug screen

• Opening port light

• Upholstered single bunk cushion

• Water maker and controls (See Water System)

• Storage below bunk

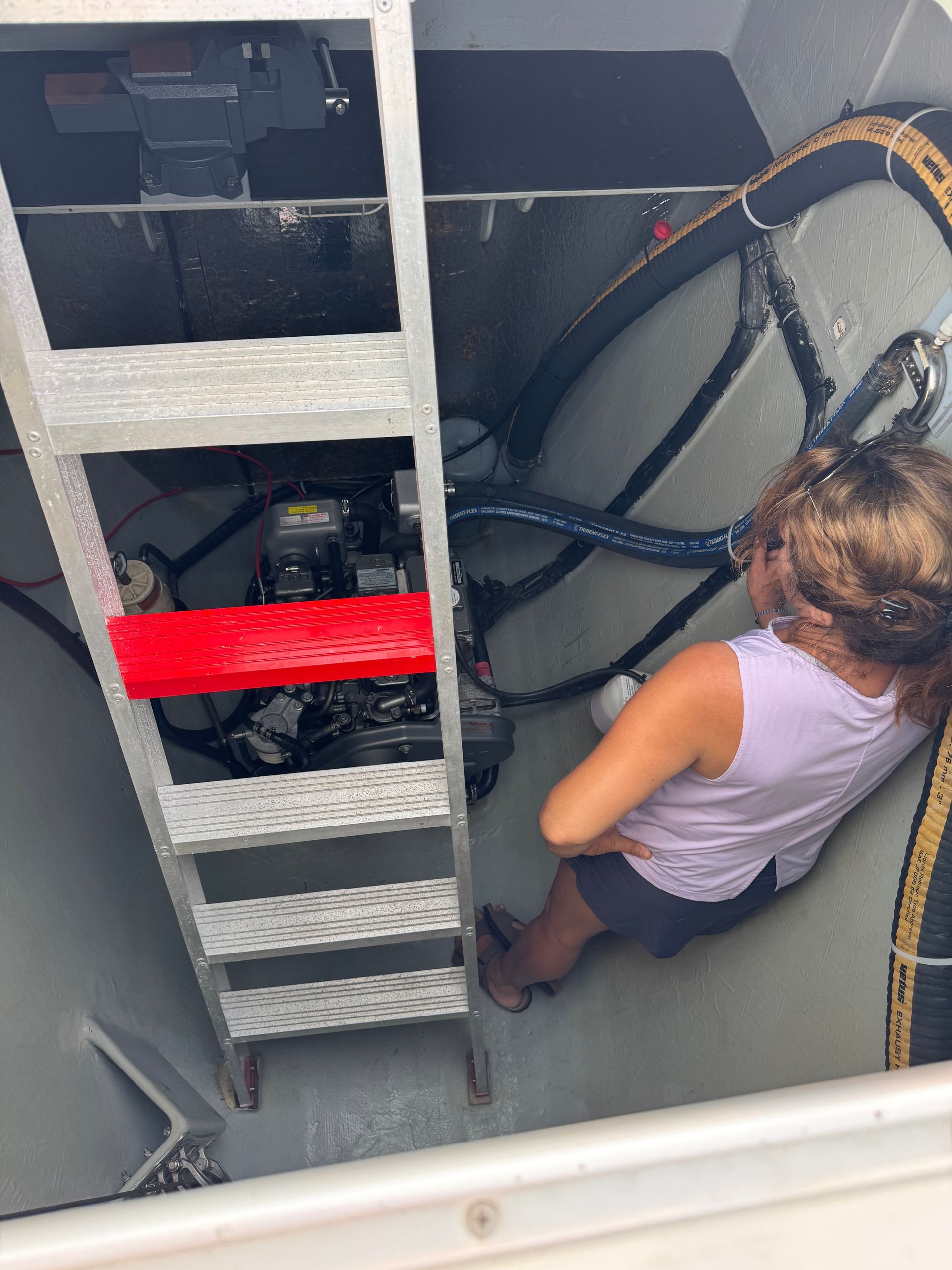

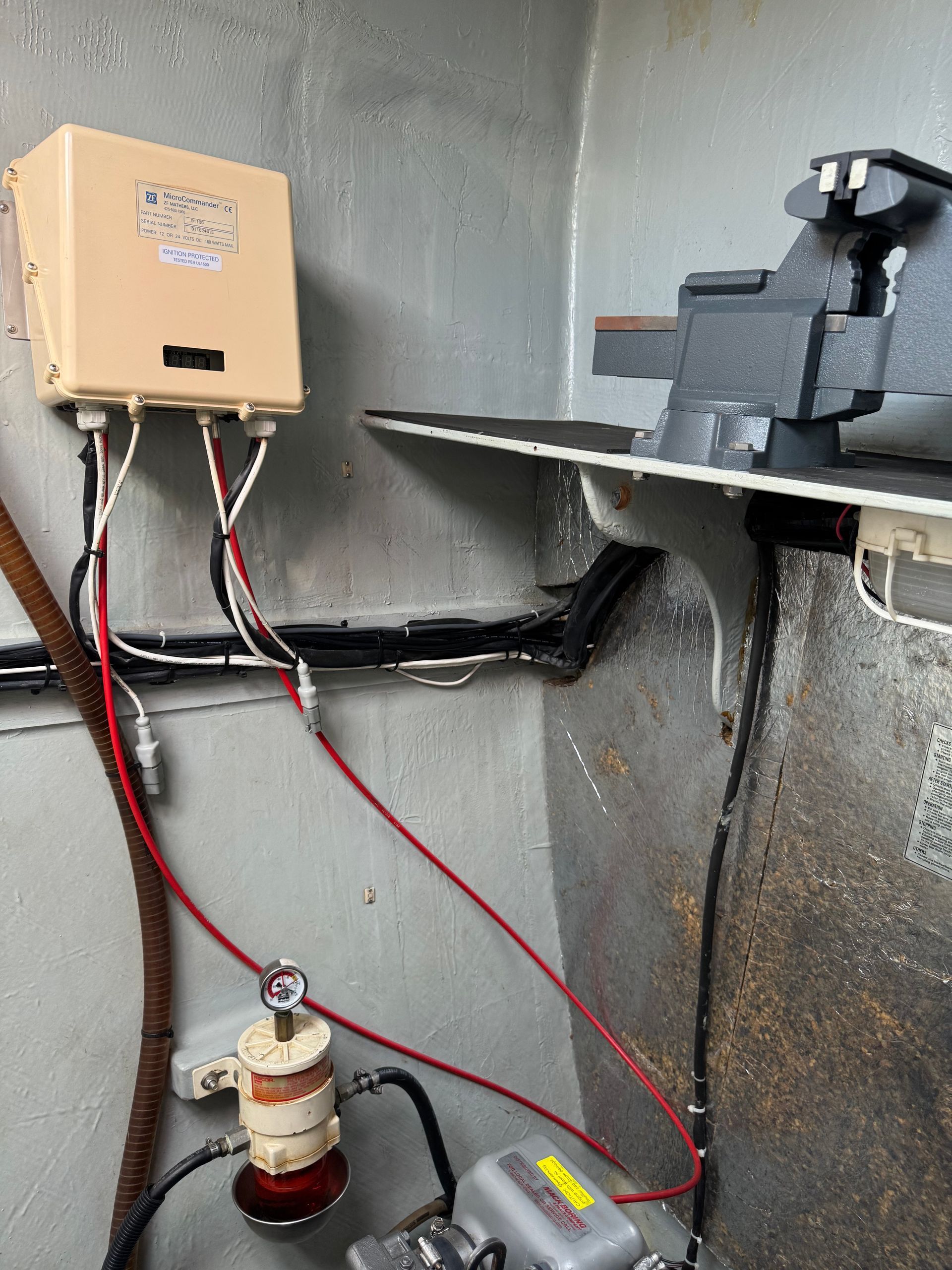

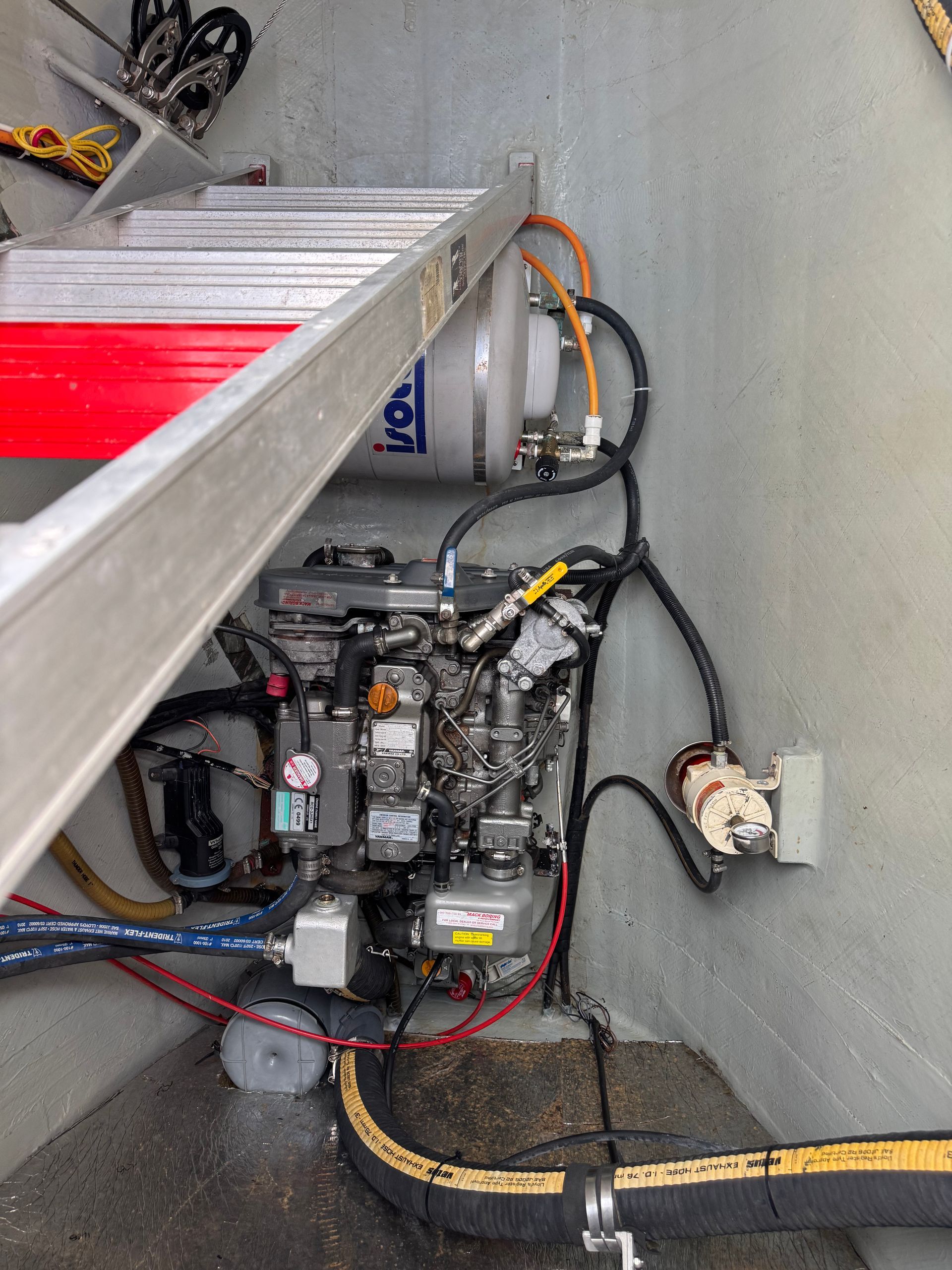

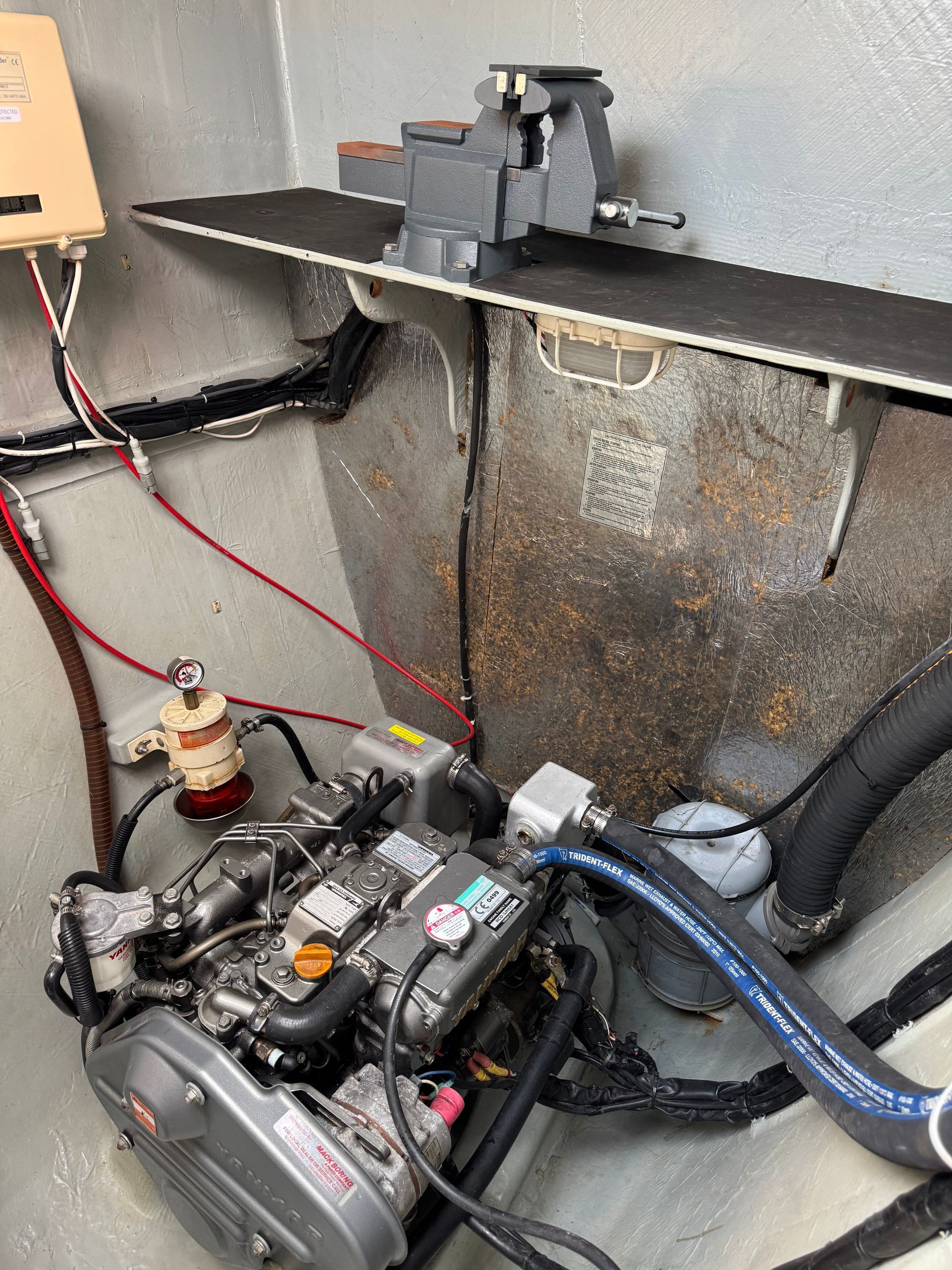

Mechanical Systems

• (2) Sets of ZF single lever engine controls (forward cockpit & internal helm station)

• (2) Primary fuel filters

• (2) Secondary fuel filters

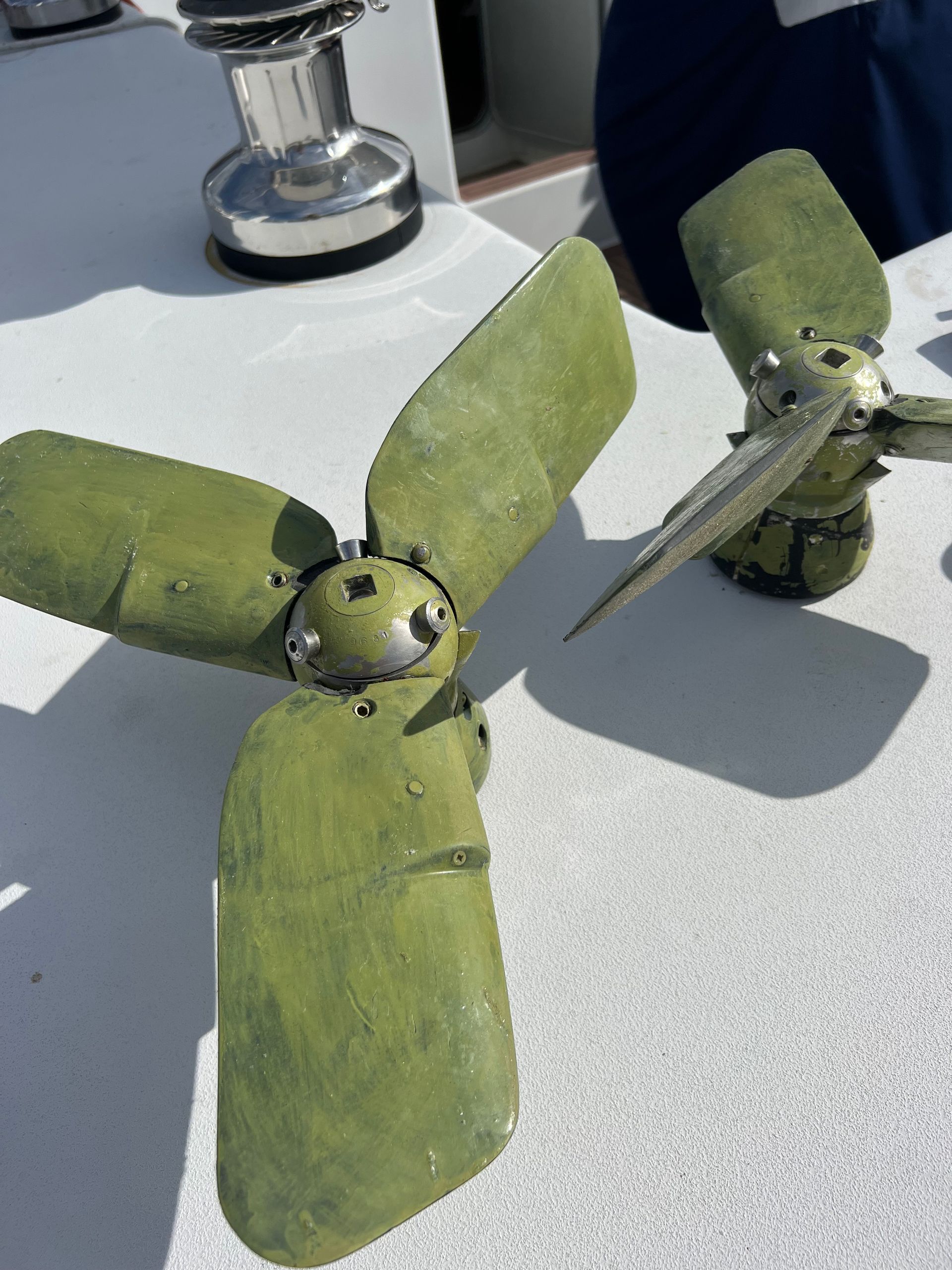

• (2) Kiwi composite feathering props – new 2026

• Spare Kiwi props and blades

• (2) Station cable/chain steering – New 2020

• Port and Starboard rudder bearings replaced 2022

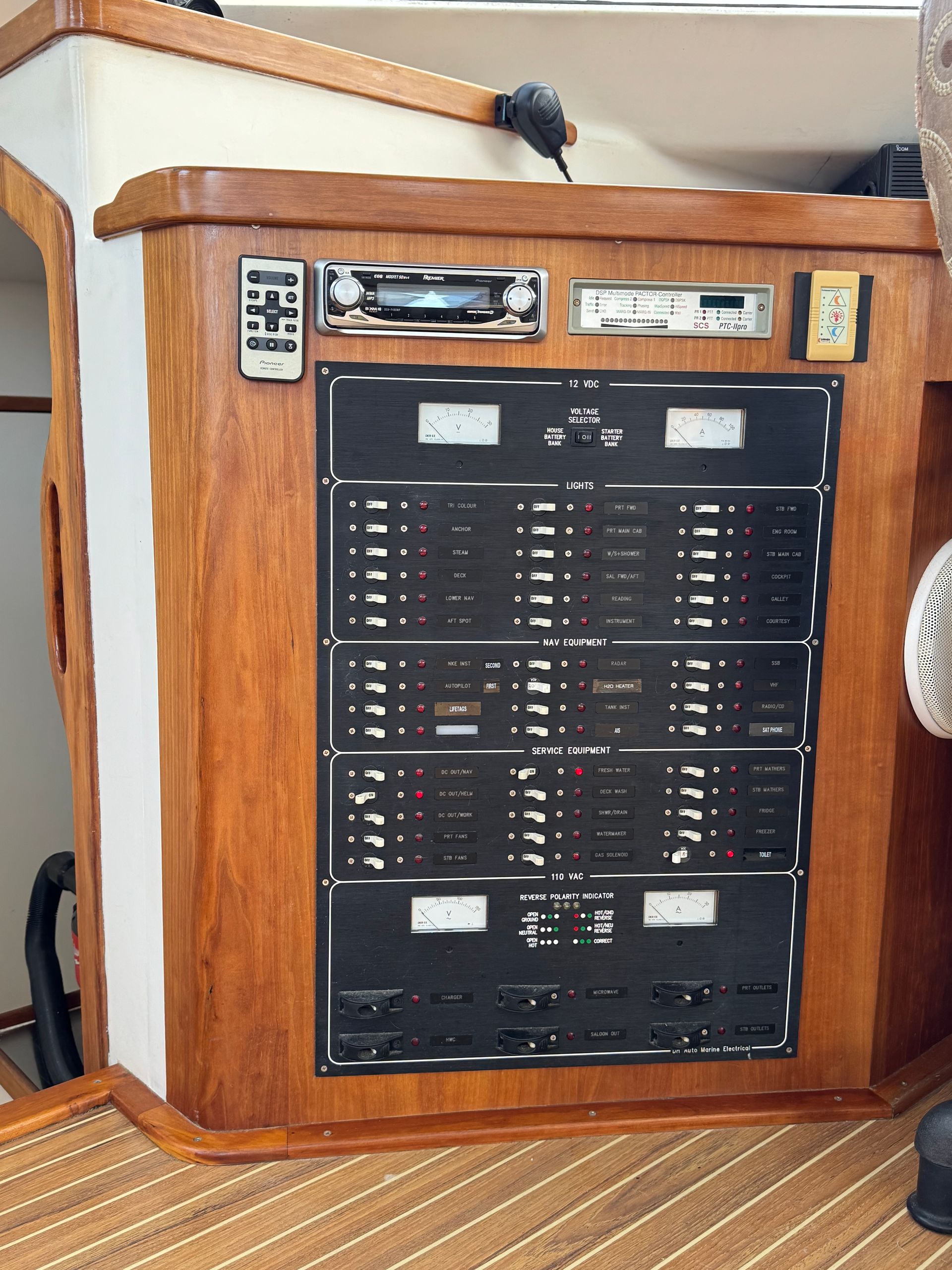

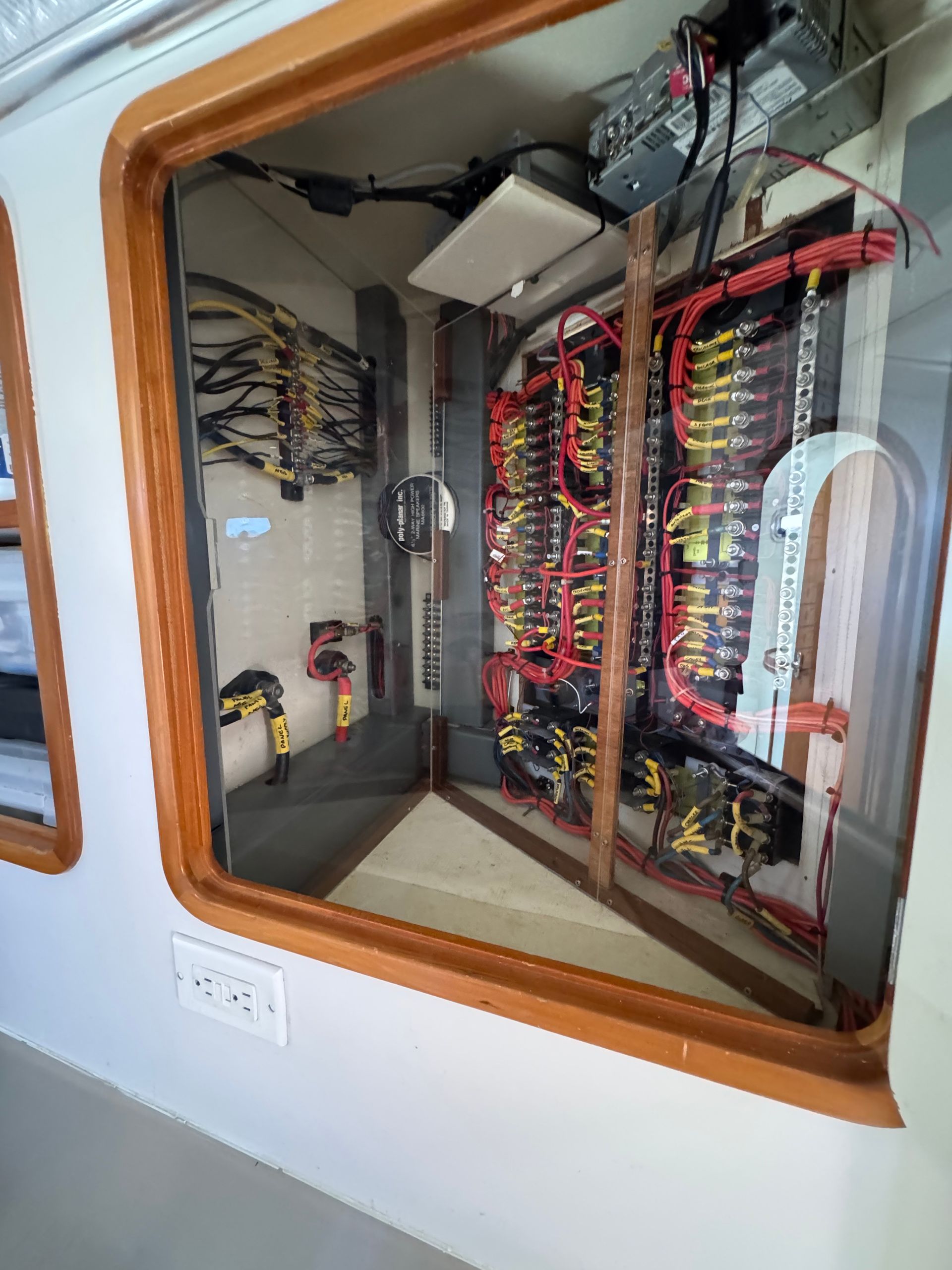

Electrical System

12-Volt DC System

• Group 31 cranking battery

• (6) 6-volt T-15 Trojan house batteries – 2026

• 675 Amp hours

• (2) Ferris 125 amp Powermax high output alternators

• (2) Perko battery switches

• (2) Blue Seas Systems battery switches

• DH Auto Marine electric distribution panel with volt and ampere meter

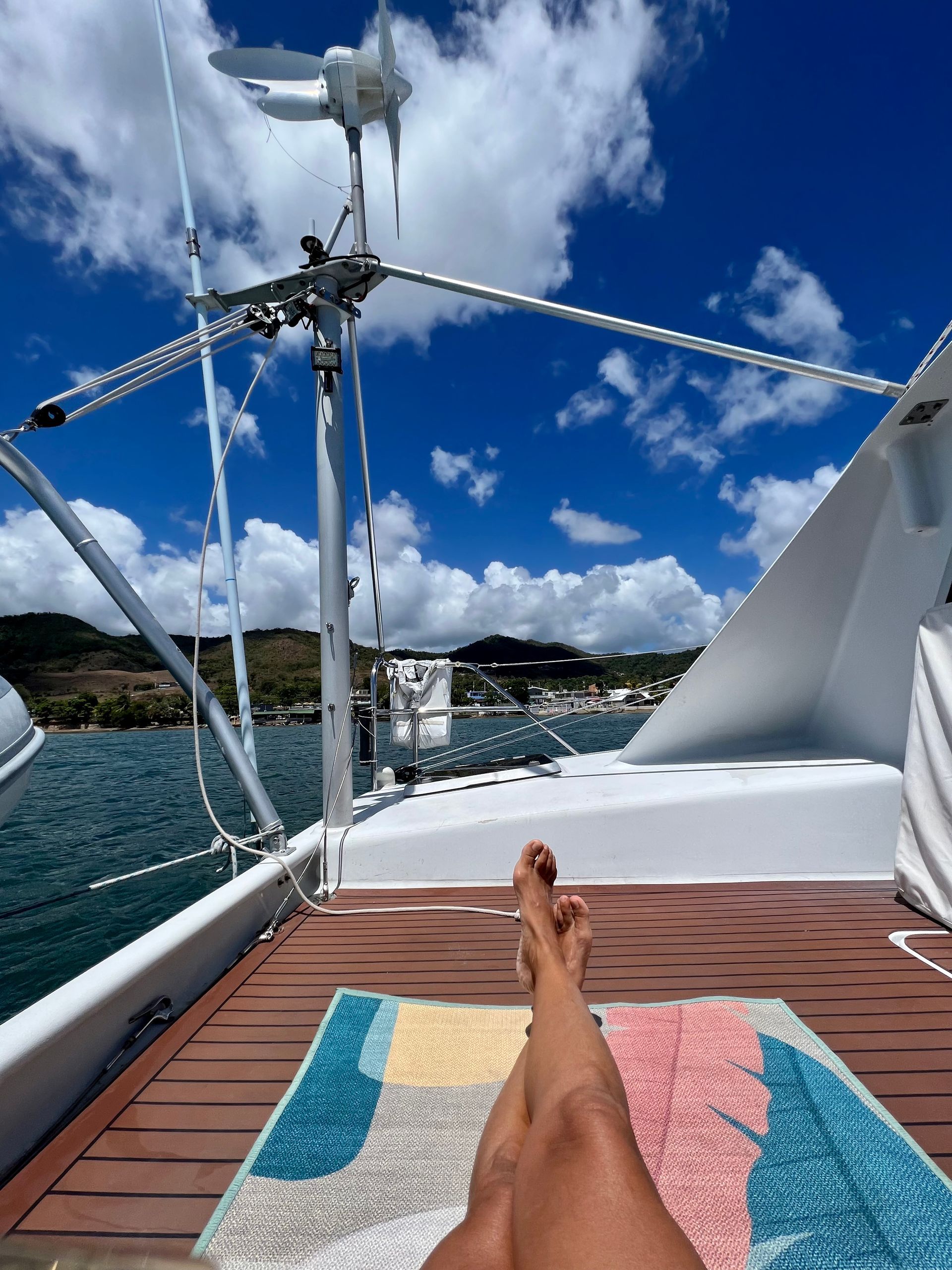

• D400 Eclectic Marine wind generator - 2026

• (6) Solbian Solar panels

• 4x Solbian SP-144L-W, 2x Solbian SP130L-W for a total of 836 watts

• 6x Victron MPPT solar charge controller, 75V, 15A with integrated Bluetooth, SCC075015060R

120-Volt AC System

• 30-Amp inlet on port transom

• 30-Amp inlet breaker in port engine room

• DH Auto Marine electric distribution panel with volt, ampere meter and reverse polarity indicator

• Duplex 120-volt outlets installed throughout boat

• Galvanic isolator in port engine compartment

• Xantrex Freedom 20 battery charger/inverter

• Link 2000 microprocessor/crossover switch

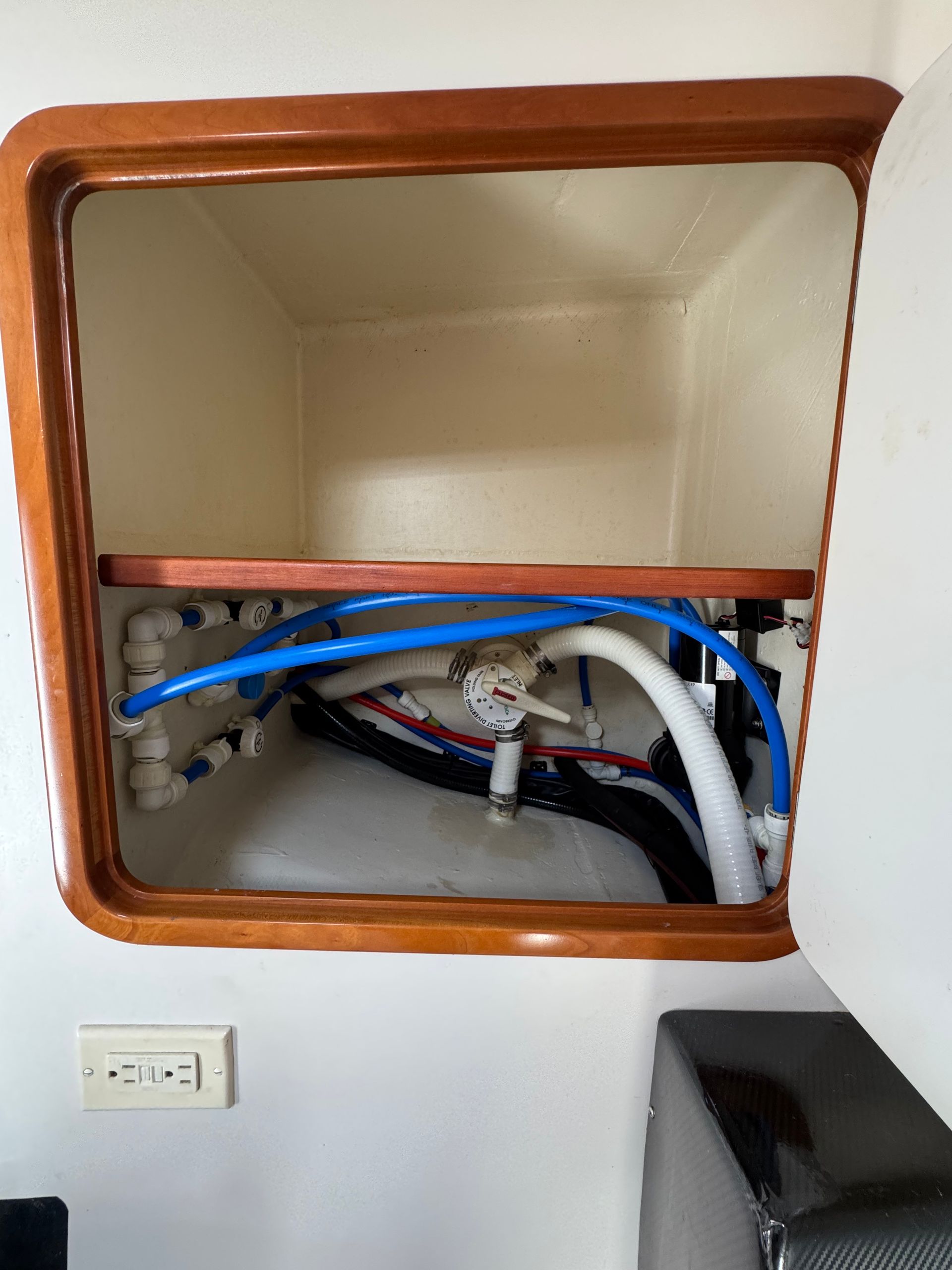

Water System

• Fiberglass tanks (See Tankage)

• Isotemp 40 liter water heater off engine heat exchanger - 2024

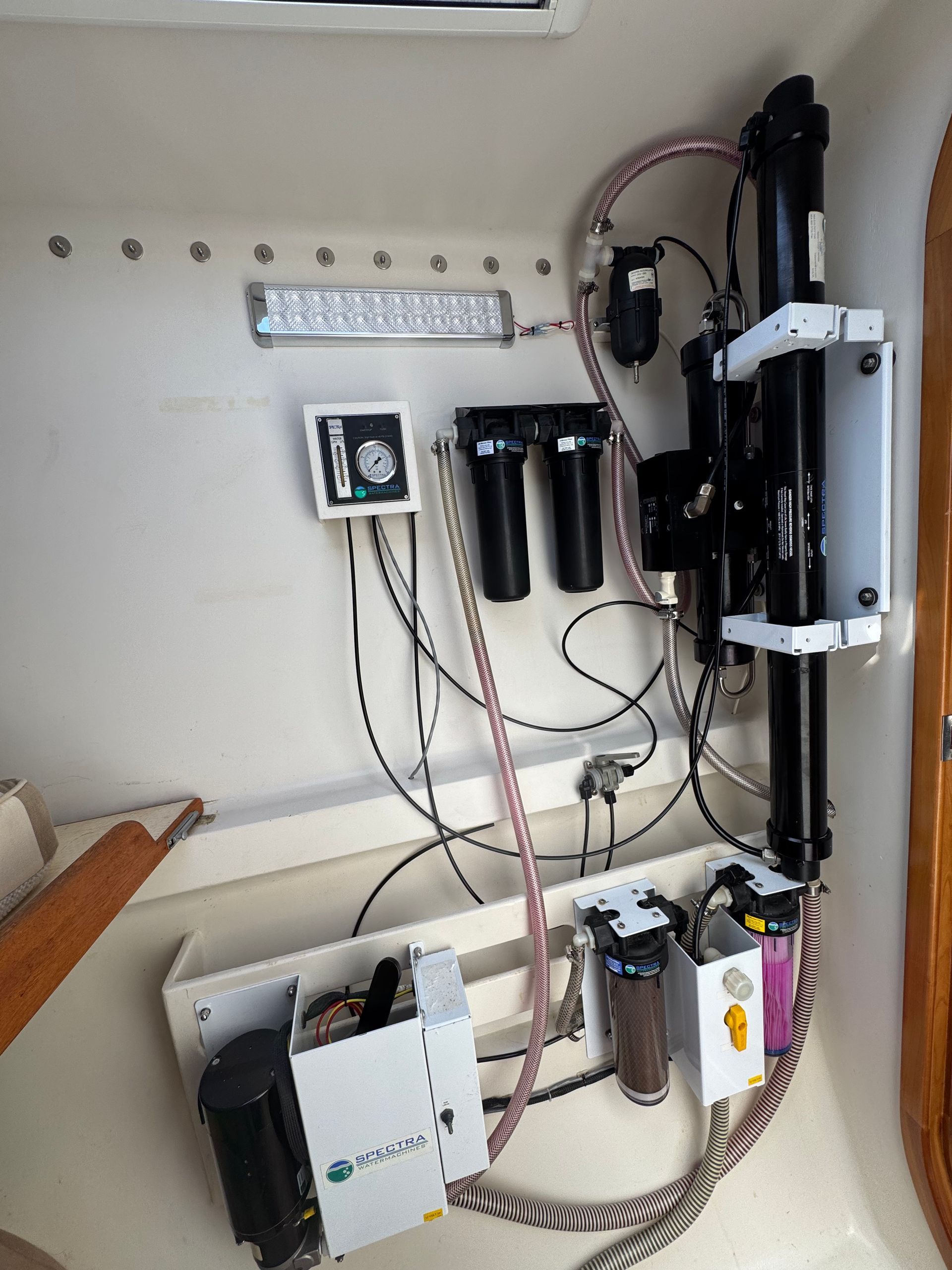

• Spectra Catalina 300 watermaker

• Spare pumps

• Hot/cold pressurized fresh water transom shower

• Salt and fresh water wash down with 50' of hose

Tankage

Diesel

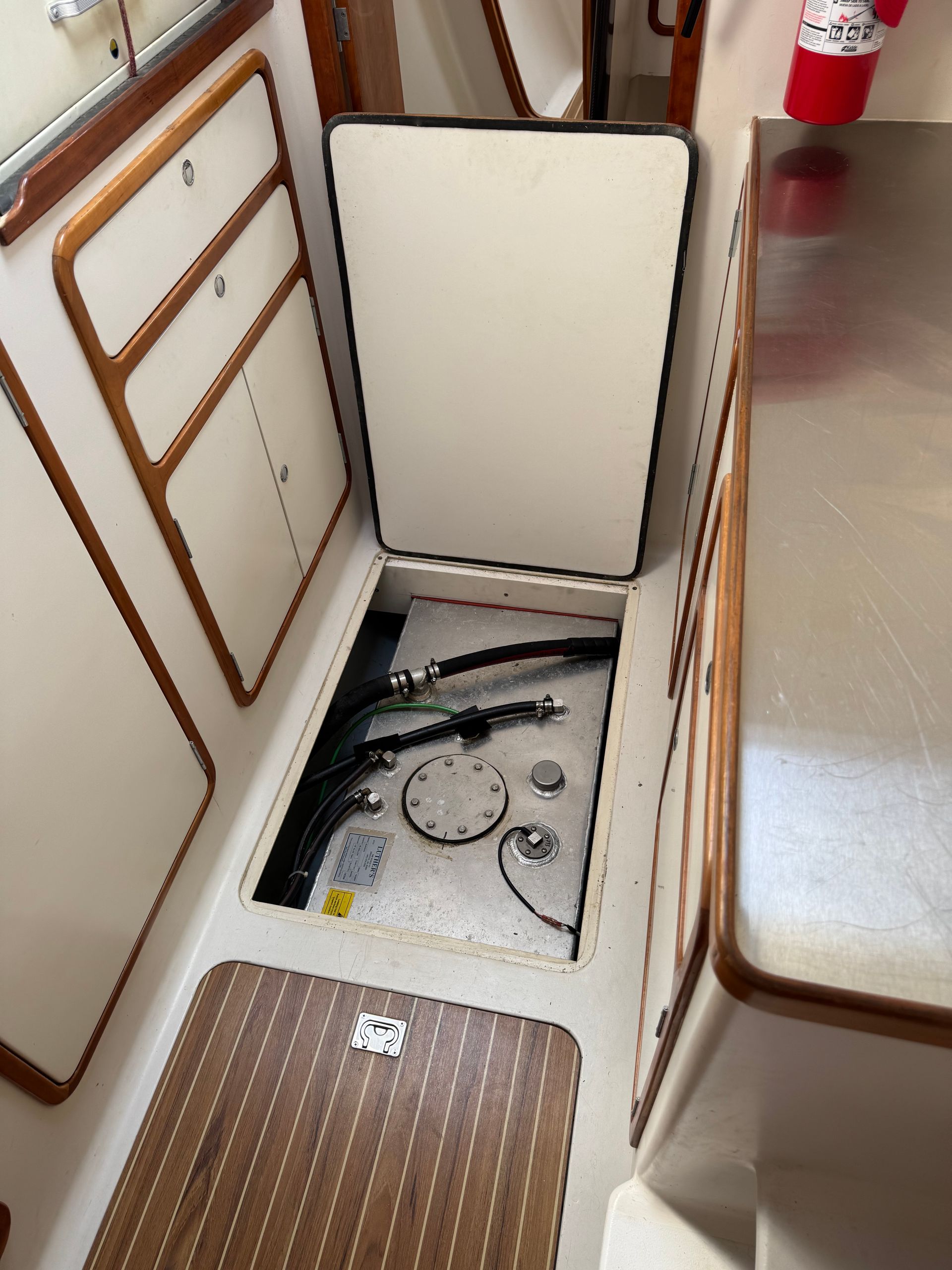

• (2) 36-Gallon aluminium tanks mounted in midship bilges

• (2) 22-Gallon aluminium tanks mounted midship under forward cockpit seats Propane

• (4) 20-Pound propane bottles in ventilated locker Water

• (2) 75-Gallon fiberglass/epoxy tanks Waste

• Aluminium holding tanks in bridge deck locker

Ground tackle & related equipment

• 73-Pound Rocna Vulcan anchor with 150' 5/16th chain and 150' 5/8th nylon rode - 2022

• 60-Pound Simpson Lawrence delta anchor with 25' 5/16th high tensile chain and 200' 7/8th nylon rode

• 55-Pound Fortress FX-55 with 325' 7/8th nylon rode

• Maxwell Freedom 800 RC windlass with foot switches and remote switch in forward cockpit

• Dual bow roller

Safety Equipment

• Rocna anchor with chain and Nylon rode

• Delta and Fortress, (not assembled) anchors with separate chain and rode

• Life Sling, four Type II and three Type I life jackets

• ACR 406-mhz EPIRB

• (2) Boat hooks

• Canister type horn

• (4) Kidde fire extinguishers

• Copy of the navigation Rules of the Road

• Foam through hull plugs
